Description
SUPER HIGH PERFORMANCE - HIGH EFFICIENCY
- Emission power up to 210W
- Shorter exposure time with high power
- Achieve stable, accurate and quick photography of different tooth positions
- Built-in remote control receiving circuit and holder interface, can be connected to the wired remote controller and triangle holder.
- A varity of photographing methods available, ensuring safer photographing and easier operation.
DETAILED DENTALFILMS - MORE RELIABLE
- 0.4mm focus X-ray tube
- Provide high-quality and clearer image for various diagnostic needs
HIGH-CAPACITY BATTERY - LONGER ENDURANCE
- 15000mAh high-capacity power lithium battery delivers a longer endurance.
- More than 1,500 dental films can be taken under a full charge.
- Takes 4hrs. to fully charge
MAXIMUM EFFICIENCY AND SAFETY
- Constant DC high frequency and voltage current output
- Ensure that X-ray output is not affected by battery voltage fluctuations
- Unique internal design and lead shield
- Efficiently minimize the X-ray leakage
- Maximize the protection of operators from ionizing radiation
- 2.8 Inch capacitive touch screen
- Over 110 dental X rays can be taken after 5 mins. of charge
1. Power adapter input: 100-240V 50/60Hz 1.5A
2. Internal power supply: DC 10.8V
3. Types of radiation: X-ray
4. Electric power:
- Maximum power: 0.21kw（70kV, 3mA, 0.1s）
- Nominal electric power: 0.21kw（70kV, 3mA, 0.1s）
6. Tube current: tube current output is fixed at 3mA, error ±20%
7. Loading time: the exposure loading time adjustment range is 0.02s～2s, the grade is adjustable, the grade is selected according to R'10 numerical system; with deviation ±(10%+1ms)
8. X-ray tube :
- X-ray tube model: D-045;
- Focal spot: 0.4mm;
- Target angle: 12.5°;
- Total filtration: 1.5mmAl/70 kV;
- Additional filtration: 0.5mmAl/70 kV
10. Output radiation field: Φ6cm±0.6cm
11. Product specifications :
- Dimension: 114mm×363.8mm×245.6mm
- Weight: 2.4KG
Operation environment :
- Environment temperature: 10°C ~ 40°C
- Relative humidity: 30% ~ 75%
- Atmospheric pressure: 70kPa ~ 106kPa
- Storage temperature: -20°C ~ 55°C
- Transportation temperature: -20°C ~ 55°C
- Relative humidity: 10% ~ 93%
- Atmospheric pressure: 70kPa ~ 106kPa
Packaging:

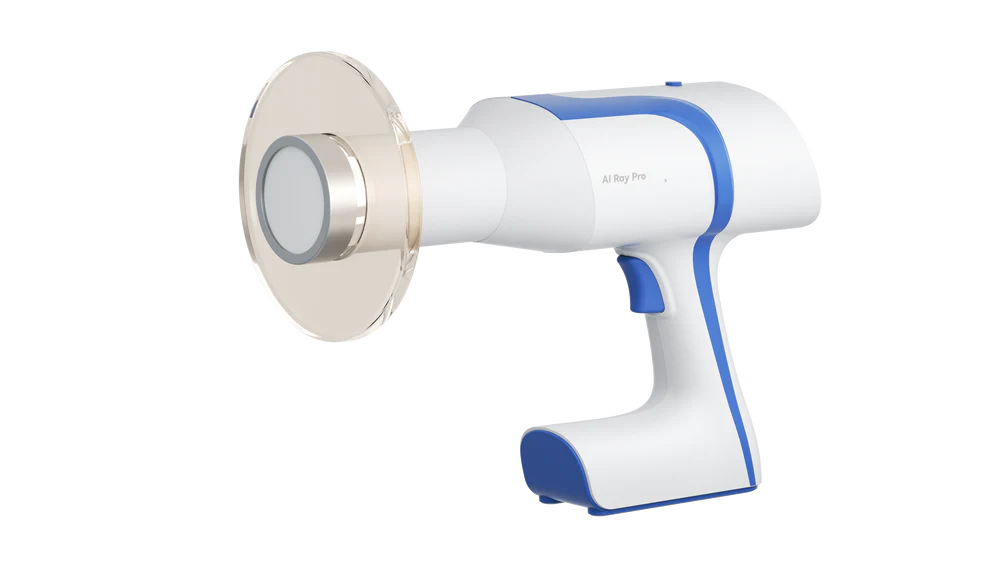

- 1 x Ai Ray Portable X-Ray Machine
- 1 x Power adapter & Cable
