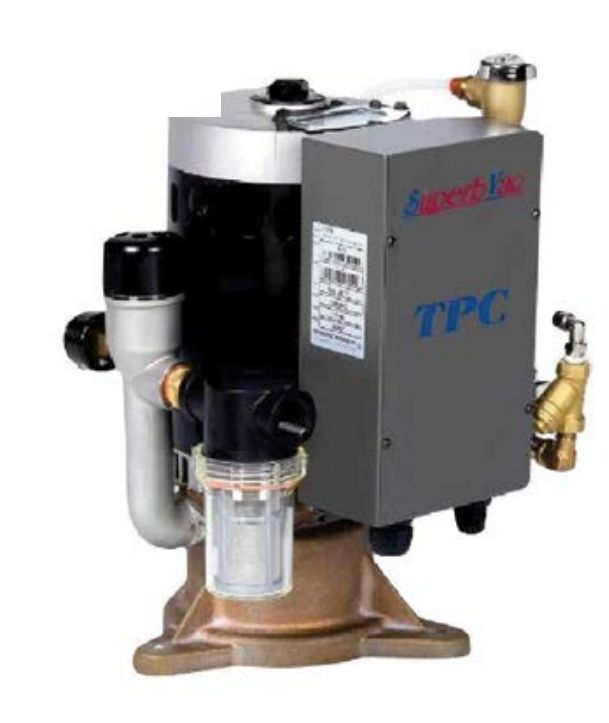

TPC Superb Vac Wet-Ring Vacuum
TPC Superb Vac Wet-Ring Vacuum
⚠ Non-Returnable Item
The following items cannot be returned:
opened handpieces, small and large equipment, alloy, special order items, Rx and controlled substances.
No installation charges will be reimbursed for the large equipment.
Description
Specification Chart
| Model | WV3 (Single) | WV5 (Single) | WV6 (Twin) | WV10 (Twin) |
|---|---|---|---|---|
| Water consumption without water recycling: | 4L/min | 4L/min | 6L/min | 6L/min |
| Water consumption with TPC water recycling: | .8L/min | .8L/min | 1.0L/min | 1.0L/min |
| Suction Rate | 900L/min | 1500L/min | 1800L/min | 3000L/min |
| Vacuum Level (1N Hg) Factory set to 1OHG | 8-15 HG | 8-15 HG | 8-15 HG | 8-15 HG |
| Noise Level dB (A) | 58 | 58 | 65 | 65 |
| Horse Power | 1.2 HP | 2 HP | 2.4 HP | 4 HP |
| Voltage | 110V / 220V | 220V | 220V | 220V |
| Frequency | 50/6Hz | 50/6Hz | 50/6Hz | 50/6Hz |
| Max. users | 3 | 5 | 6 | 10 |
| Current (A) | 8A | 13A | 8Ax2 | 13Ax2 |
| Circuit Breaker (A) | 20A | 20A | 20Ax2 | 20Ax2 |
| Inlet Connection Size | 3/4" | 3/4" | 1" | 1" |
| Drain Connection Size | 1.25" | 1.25" | 1.25" | 1.25" |
| City Water Connection Size | 3/8" | 3/8" | 3/8" | 3/8" |
| Air Exhaust Connection Size | 2 3/8" | 2 3/8" | 2 3/8" | 2 3/8" |
| Inlet Water Pressure (PSI) | 10Psi / 0.7bar | 10Psi / 0.7bar | 10Psi / 0.7bar | 10Psi / 0.7bar |
| Ambient Temperature | 2 C- 40 | 2 C- 40 | 2 C- 40 | 2 C- 40 |
| Product Size (LxWxH) Inches | 16.5x14x18 | 16.5x14x18 | 28x17x18 | 28x17x18 |
| Product Weight (LBS) | 62lbs | 66lbs | 176lbs | 198lbs |
