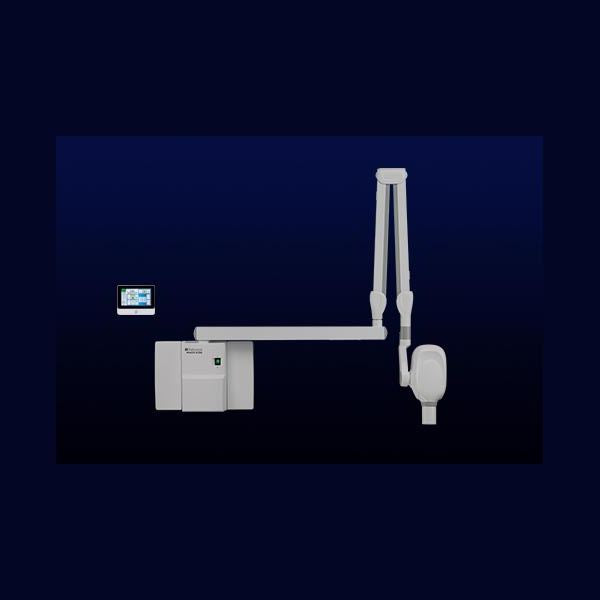

Takara Belmont PHOT-xlls DC Intraoral X-Ray w/ LCD Panel
BEL-PHOT-XllS-DC-LCDTakara Belmont PHOT-xlls DC Intraoral X-Ray w/ LCD Panel
Regular price
$0.00
Sale price
$0.00
Regular price
Unit price
per
Shipping calculated at checkout.
Description
The PHOT-xIIs LCD is engineered for dental professionals who require exceptional image clarity and adaptable functionality. From detailed diagnostic work to everyday procedures, it provides consistent, high-resolution imaging with intuitive controls, helping dental clinicians make informed decisions while streamlining workflow.
Advanced Control & Monitoring

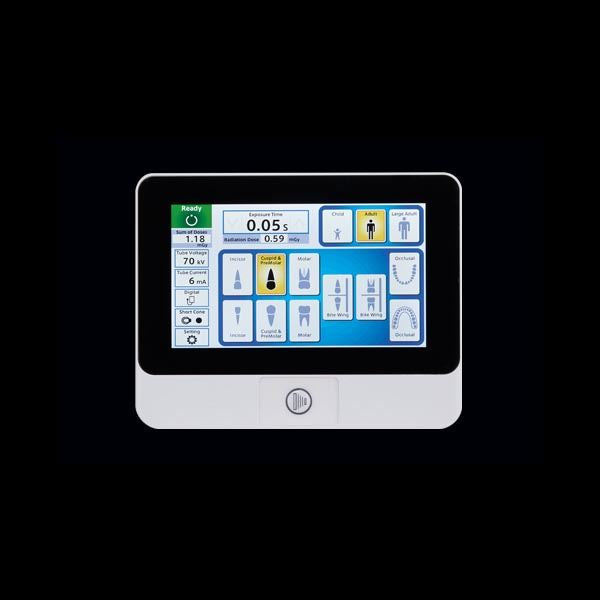

- Bright LCD touchscreen for easy operation

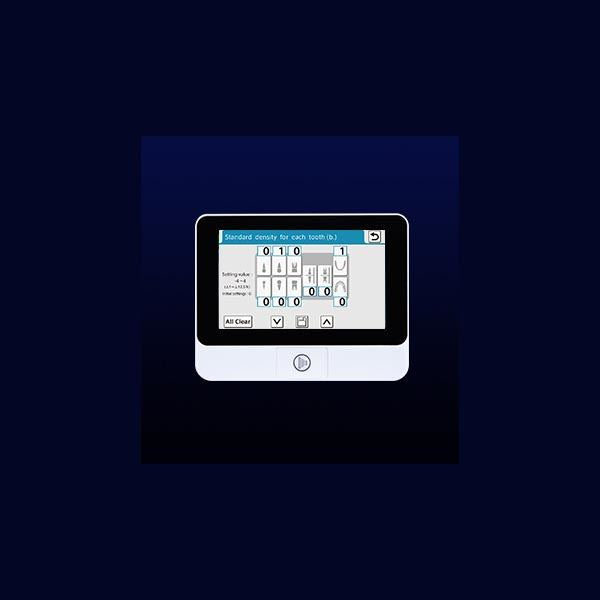

- Custom exposure settings per patient
- Real-time dose monitoring displayed on-screen
High-Resolution Image Quality
- Ultra-fine 0.4mm focal spot for crisp, detailed images
- Selectable 60 kV and 70 kV settings for tailored diagnostics
- Consistent imaging performance across patient types
Flexible Positioning & Workflow

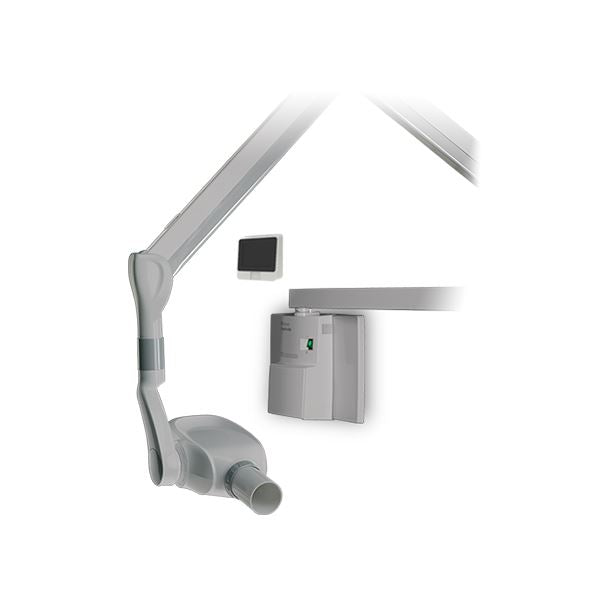

- Lightweight tube head with zero-drift arm for stable placement
- Multiple arm length options to suit any operatory layout
- Compact, versatile design allowing imaging from multiple angles
Seamless Integration
- Supports wall- or cabinet-mounted installation
- Easily adapts to different practice layouts
-
Integrates smoothly into existing workflow without disruption
Technical Specifications
- Model Number: 505WK
- Generator Type: DC
- User Interface: LCD Touchscreen Sub-controller
- Voltage: 120 VAC
- Selectable Tube Voltage (kV): 60 kV, 70 kV
- Selectable Tube Current (mA): 3 mA, 6 mA
- Exposure Time: 0.01 – 2.0 s
- Minimum Filtration in Useful Beam: 2.0 mm AI Equivalent at 70 kV
- Cone Length: 8” Source to Skin Distance (SSD)
- Focal Spot: 0.4 mm (IEC60336)
- Duty Cycle: 1:30
- Wall Mounting Plate: 16” Center Stud Mounting
- Maximum Reach With Arm Length Selection: 84-1/8” with 40” Length Arm; 75-5/8” with 31-1/2” Length Arm; 64- 1/8” with 20” Length Arm; 56-1/8” with 12” Length Arm
-
Options: Rectangular Collimator, 12” Long Cone, Coiled Wire,
Remote Switch, Pass-Thru Mounting Plate - Applicable Regulations Compliance: ETL, FDA
- Warranty: 5-Year
