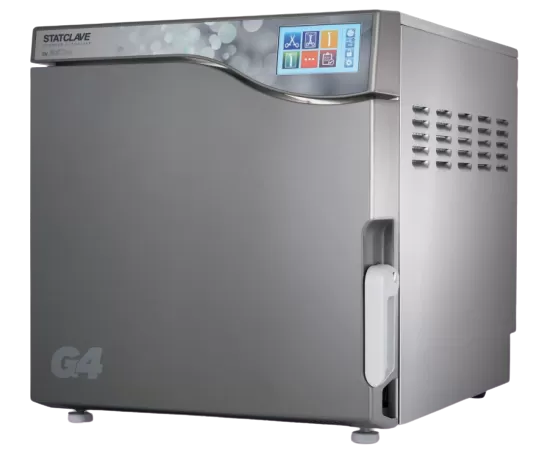

SciCan STATCLAVE G4 Chamber Autoclave
SciCan STATCLAVE G4 Chamber Autoclave
Description
With the reliability and trust you’ve come to expect from STATIM, the STATCLAVE G4 is designed to deliver speed, capacity and efficiency to your practice. STATCLAVE is a chamber autoclave that incorporates both pre-sterilization vacuum to improve steam penetration and post-sterilization vacuum to improve drying. Its 11” chamber and vacuum-assisted closed-door drying efficiently delivers sterilized and dried wrapped instruments.
Fast
STATCLAVE can efficiently sterilize and dry wrapped instrument loads in as little as 38 minutes.
Dry
Closed-door drying and vacuum technology results in perfectly dried instruments every time.
G4 Technology
SciCan’s G4 equipment can connect and send information to your smart devices or computer so you can have cycle data, instructions, and maintenance notifications at your fingertips.
Capacity

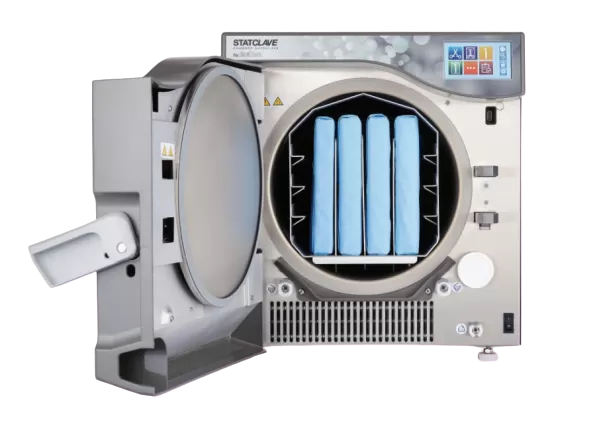

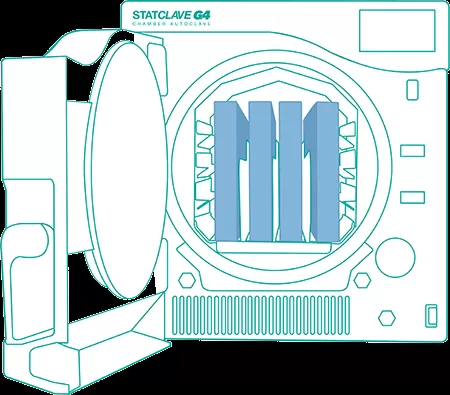

STATCLAVE’s 11" chamber can sterilize up to four full-size cassettes and 4 exam cassettes or 20 pouches with included pouch racks.
Versatile
STATCLAVE STATCLAVE offers a number of filling & draining options, including easily accessible and cleanable top reservoirs, front manual fill and a rear automatic fill option that can be connected to the VistaPure water filtration system for automated filling.
Gentle
Fresh water is used in every cycle, reducing the buildup of oils and debris.
Cycle Times and Maximum Load Weights
| Cycles | Temperature / Time | Cycle Times (120V)* | Cycle Times (240V)* | Maximum Load Weight |
| STATCLAVE G4 | ||||
|---|---|---|---|---|
| Solid Unwrapped | 270°F (132°C) / 4 mins | 18 mins | 17 mins | 13.2 lbs (6 kg) |
| Solid Wrapped | 270°F (132°C) / 4 mins | 44 mins | 41 mins | 13.2 lbs (6 kg) |
| Hollow Unwrapped | 270°F (132°C) / 4 mins | 23 mins | 19 mins | 13.2 lbs (6 kg) |
| Hollow Wrapped | 270°F (132°C) / 4 mins | 50 mins | 43 mins | 13.2 lbs (6 kg) |
| Textiles/Porous | 270°F (132°C) / 4 mins | 49 mins | 36 mins | 4.4 lbs (2 kg) |
| Rubber & Plastic | 250°F (121°C) / 20 mins | 36 mins | 31 mins | 4.4 lbs (2 kg) |
Unit Specifications
| STATCLAVE G4 | |
|---|---|
| Unit size (L x W x H)† | 25” x 17.75" x 19.5" / 635 x 450 x 495mm |
| Volume | 6.87 gal (26 L) |
| Chamber Dimensions (D x L) | 11" diameter, 15" depth / 297 x 381mm |
| Weight | 61.6 kg (135.8 lbs) (without water and packaging) |
| Voltage | 120V, 60Hz, 12A / 208V-240V, 60Hz, 12A |
†On the right side, allow 2" (50mm) of space for ventilation. Allow for at least 7" (180mm) above unit to enable access to reservoirs. If less than 7" (180mm), screw on hinges can be removed to allow reservoir lid to slide in and out of position.
