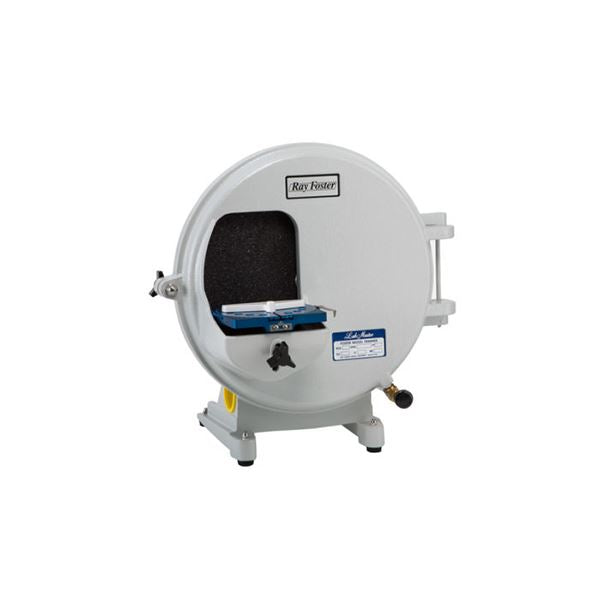

Ray Foster Model MT15D Orthodontic 12" Model Trimmer w/ Diamond Wheel

The Orthodontic Angulating Work Table, made from hardened anodized aluminum for a long, accurate work life, is calibrated for precise positioning and trimming of models. Accessories supplied with the Orthodontic Model Trimmer include Vertisquare, Angle Guide, and 70mm Adjustment Gauge.

---

Specifications:

• 1/2 HP motor, with 1.25 service factor producing .625 HP actual power
• 12" dia., 1/4" thick grinding wheel
• 5-1/4" wide, 5" high cutting surface
• 17" high, 17" wide, 16" deep
• 115 volt, 60 Hz standard
• 230 volt, 50/60 Hz optional for export
• Net weight 41 lbs, shipping weight - 49 lbs

---

Includes: MT15 Orthodontic 12" Model Trimmer & Diamond Wheel

---
