Ray Foster Model Arch Trimmer w/ Cyclone Dust Collector

RAY-MR20C

Ray Foster Model Arch Trimmer w/ Cyclone Dust Collector

Regular price $1,849.00
Sale price $1,849.00 Regular price $2,399.00
OFF Sold out

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
View full details
Reviews

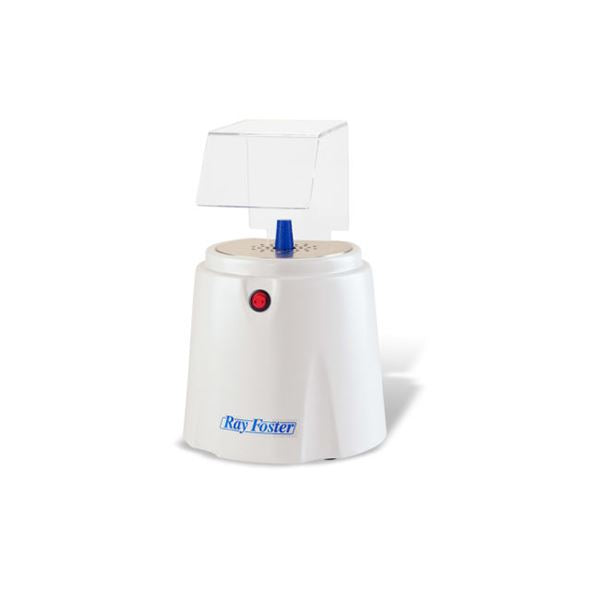

Features & Benefits Model Arch Trimmer:
  • Large, stainless steel work surface with generous venting for dust removal
  • 1-1/2” (38mm) hose connection, connects directly to 1-1/2” vacuum hose, no need for adaptors
  • Power output connection for automatic on/off of dust collector
  • Safety switch disconnects power when top is removed
  • Comes with fast cutting, non-clogging, SaburTooth Carbide Burs, one cylinder and one taper, course grit
  • Complete trimming system available by ordering with CDC1 Cyclone Dust Collector, order item MR20C


Specifications Model Arch Trimmer:
  • Diameter 9″ at base
  • Height to work surface 8-1/4” (210mm)
  • Overall height w/safety shield 13” (330mm)
  • Net weight 10-1/2 lb (4-3/4 kg) Shipping weight 12 lb (5-1/2kg)
  • 115 volt, 60 Hz standard
  • 230 volt, 50/60 Hz optional for export

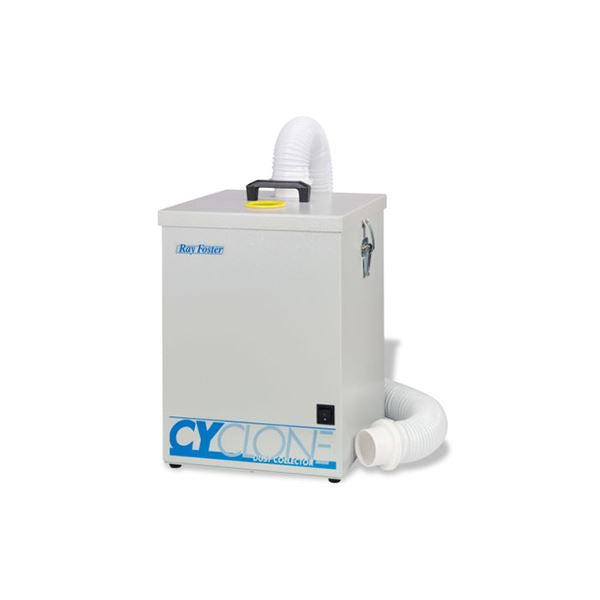

Features & Benefits Cyclone:
  • Very quiet 59 dB noise level
  • One HP motor, 112 cubic feet per minute (CFM) suction power
  • Easy to change, economical disposable paper primary filter. Retains 3 micron and larger particles
  • Permanent cloth secondary filter for retention of finer dust particles, insuring long motor life
  • Two station capability
  • Includes one 6’ long X 2-1/2” ID vacuum hose and four (4) extra disposable paper dust bags
  • Optional remote foot switch
  • Easily adaptable to 1-1/2″, 2-1/2″ or 3″ I.D. hose for increased flexibility


Specifications Cyclone:
  • Unit size 12” x 12” x 16.5” high
  • 115 volt, 60 Hz standard
  • 230 volt, 50/60 Hz optional for export
  • 35 lbs. net weight, 42 lbs. shipping weight

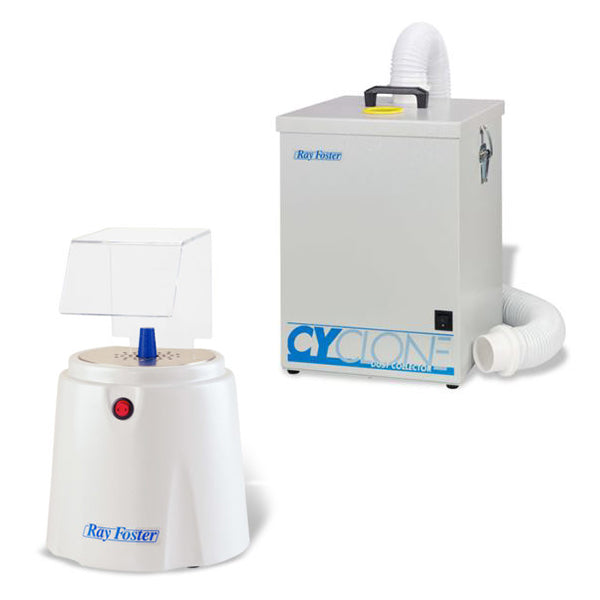

Includes: Model Arch Trimmer & Cyclone Dust Collector
