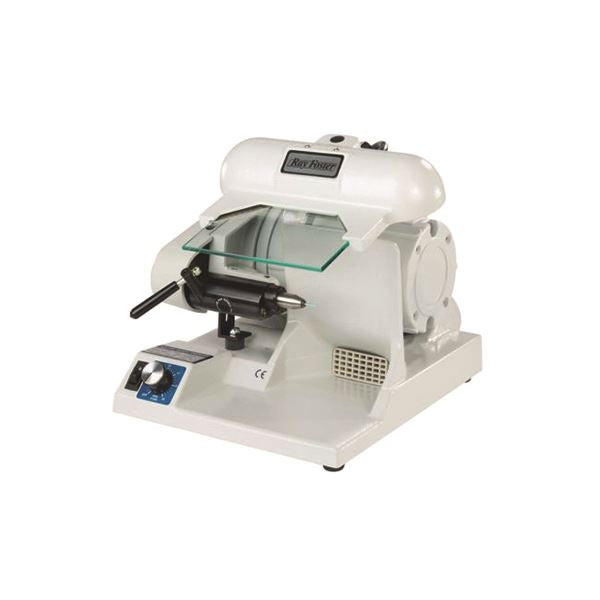

Ray Foster Model AG05 (Variable Speed w/ Automatic Spindle)

All models feature a fully adjustable safety shield and light assembly, adjustable working height, and large work area for operator comfort. Each machine is equipped with a precision high-speed automatic spindle, which permits the changing of tools without stopping the motor.

---

Features & Benefits:

• Fingertip speed control with a front panel mounted potentiometer

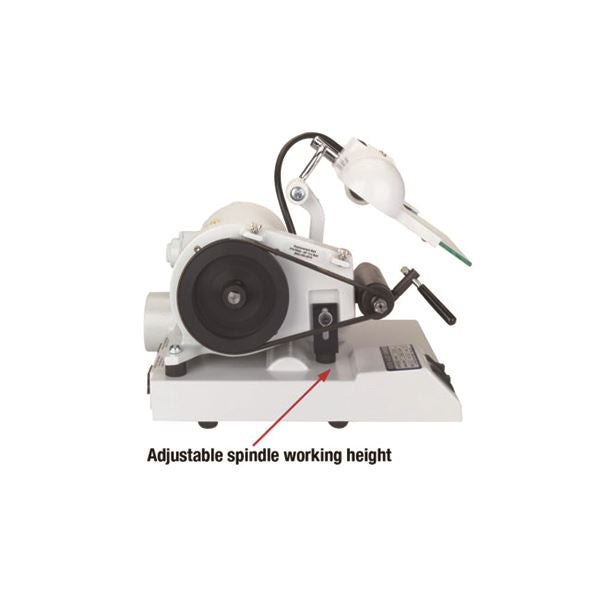

• Adjustable spindle working height
• Heavy duty, high torque 1/4 HP motor in a totally enclosed housing

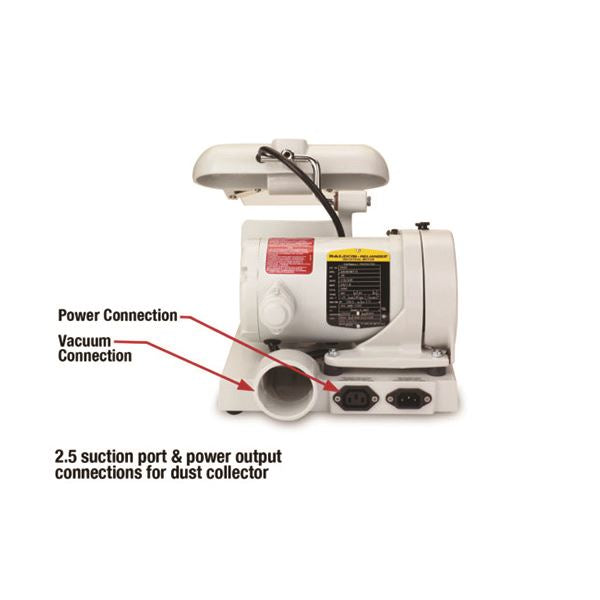

• 2.5” suction port for connection to Ray Foster Cyclone Dust Collector or other dust collector system
• Power output connection for automatic on/off of dust collector
• New compact design
• Motor is UL-recognized and CSA-certified for electrical safety

---

Specifications:

• Width 10.25”, Length 11.75”, Height 11”
• 115 volt 50/60 Hz standard
• 230 volt 50/60 Hz optional for export
• Net weight 28 lbs., shipping weight 31 lbs.

---
