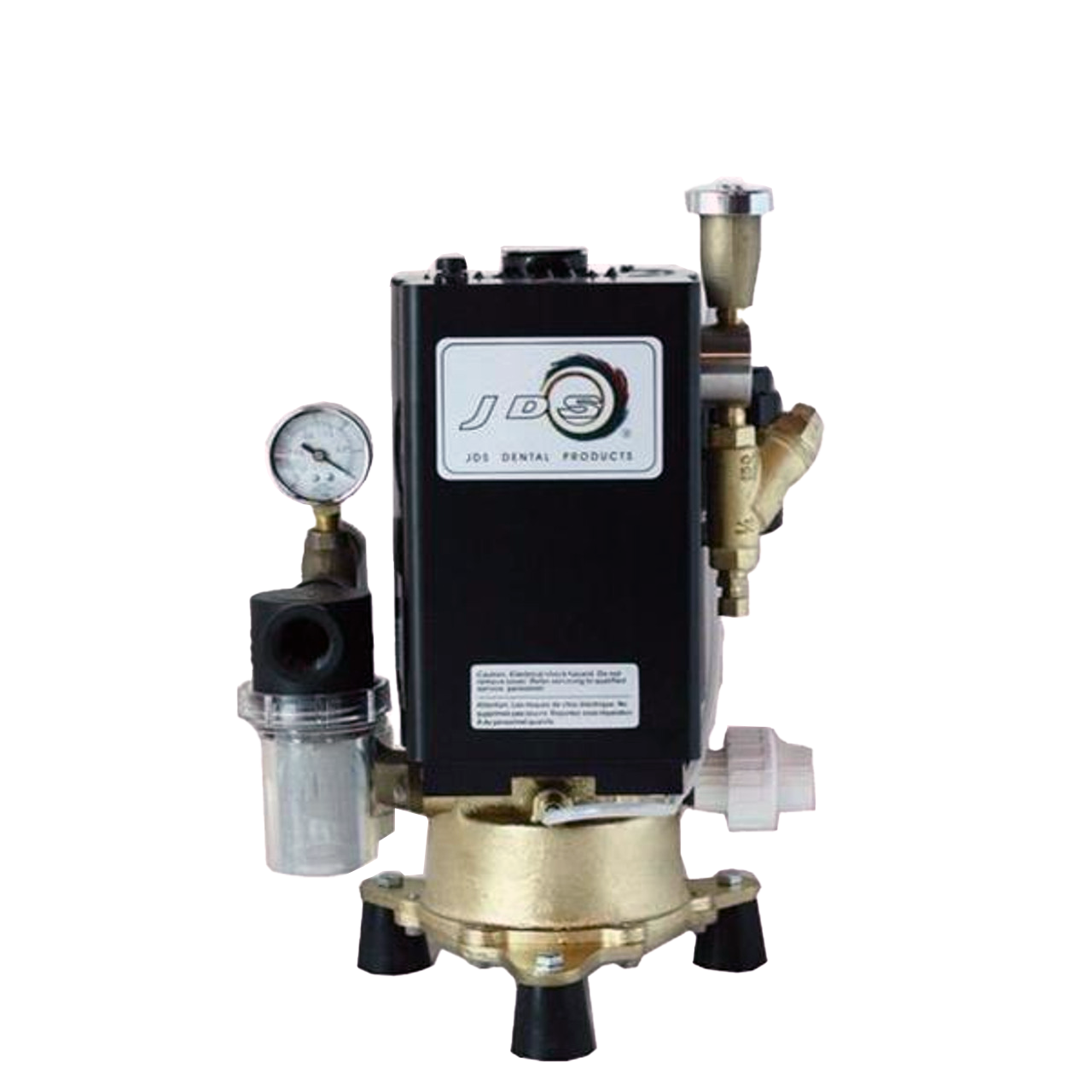

JDS - JVB Series Wet-Ring Vaccum Pump

Key features
- Equipped with motors from Bluffton Motor
Works, reliability and trouble free operation
comes first
- ETL listed, UL #60601-1 Compliant: Standard
for safety medical electrical equipment
Certified to CSA C22.2 #601.1: Medical
electrical equipment
- Water recycler saves 70% on water
consumption
- Dual voltage for 1 HP and 1.5 HP models,
single voltage for 2 HP models

Specification Chart - JVB Single

Model Number	Total HP	User Capacity	Voltage/Frequency	Running Amps	Size (H x W x D)	Water Recycler	Air/Water Separator
JVBS10	1.0 HP	2	115V or 208-230V @ 60 Hz	16/8	16 x 12 x 12	No	No
JVBS10R	1.0 HP	2	115V or 208-230V @ 60 Hz	16/8	16 x 12 x 12	Yes	No
JVBS10S	1.0 HP	2	115V or 208-230V @ 60 Hz	16/8	16 x 12 x 12	No	Yes
JVBS10RS	1.0 HP	2	115V or 208-230V @ 60 Hz	16/8	16 x 12 x 12	Yes	Yes
JVBS15	1.5 HP	3	115V or 208-230V @ 60 Hz	22/11	17 x 12 x 12	No	No
JVBS15R	1.5 HP	3	115V or 208-230V @ 60 Hz	22/11	17 x 12 x 12	Yes	No
JVBS15S	1.5 HP	3	115V or 208-230V @ 60 Hz	22/11	17 x 12 x 12	No	Yes
JVBS15RS	1.5 HP	3	115V or 208-230V @ 60 Hz	22/11	17 x 12 x 12	Yes	Yes
JVBS20	2.0 HP	4	208-230V @ 60 Hz	13.4	19 x 12 x 12	No	No
JVBS20R	2.0 HP	4	208-230V @ 60 Hz	13.4	19 x 12 x 12	Yes	No
JVBS20S	2.0 HP	4	208-230V @ 60 Hz	13.4	19 x 12 x 12	No	Yes
JVBS20RS	2.0 HP	4	208-230V @ 60 Hz	13.4	19 x 12 x 12	Yes	Yes


Specification Chart - JVB Twin

Model Number	Total HP	User Capacity	Voltage/Frequency	Running Amps	Size (H x W x D)	Water Recycler	Air/Water Separator
JVBTW20S	2.0 HP (1.0 HP x 2)	4	208-230V @ 60 Hz	8 (x2)	23 x 28 x 17	No	Yes
JVBTW20RS	2.0 HP (1.0 HP x 2)	4	208-230V @ 60 Hz	8 (x2)	23 x 28 x 17	Yes	Yes
JVBTW30S	3.0 HP (1.5 HP x 2)	6	208-230V @ 60 Hz	11 (x2)	26 x 28 x 17	No	Yes
JVBTW30RS	3.0 HP (1.5 HP x 2)	6	208-230V @ 60 Hz	11 (x2)	26 x 28 x 17	Yes	Yes
JVBTW40S	4.0 HP (2.0 HP x 2)	8	208-230V @ 60 Hz	13.4 (x2)	30 x 28 x 17	No	Yes
JVBTW40RS	4.0 HP (2.0 HP x 2)	8	208-230V @ 60 Hz	13.4 (x2)	30 x 28 x 17	Yes	Yes
