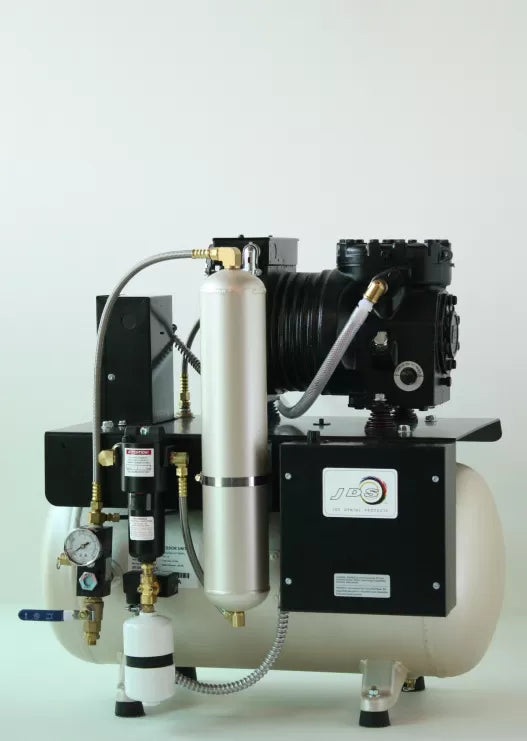

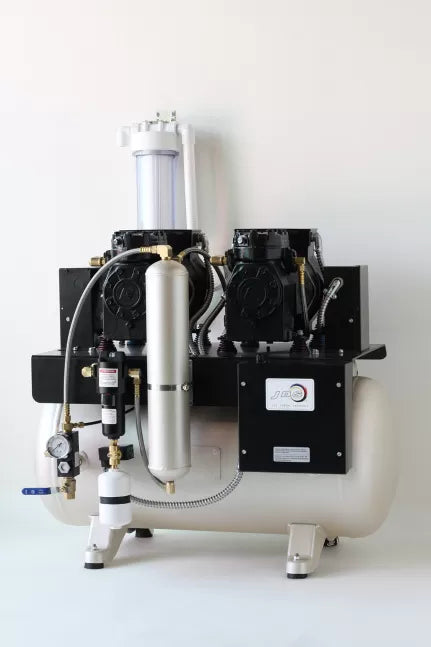

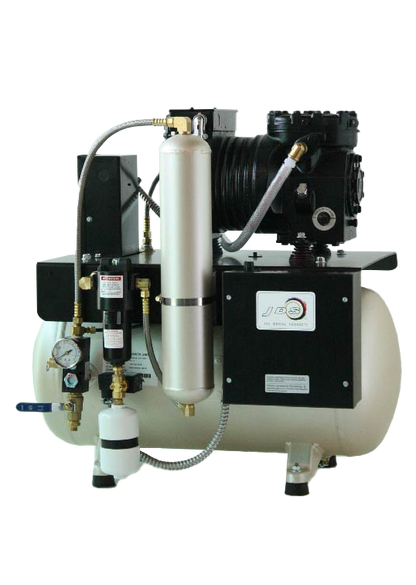

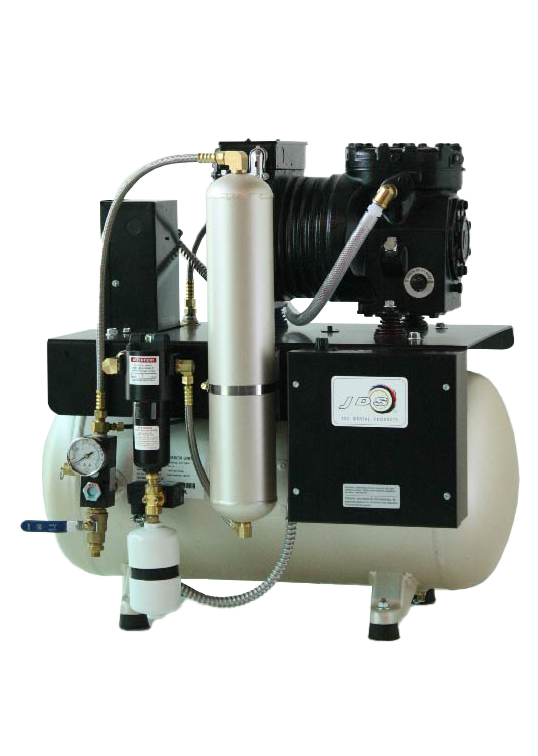

JDS - JLC Series Lubricated Air Compressor
JDS - JLC Series Lubricated Air Compressor
Description
| Model Number | Total HP | User Capacity | Voltage | Line Frequency | Total Amps | Circuit Breaker (Amp) | CFM @ 80 PSI | No. of Heads | dBA | Tank Capacity | Size (H × W × D) | Temperature Range | Shipping Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JLC11 | 1.0 | 1–3 | 115V | 60 Hz | 12.4 | 20 | 5.3 | 1 | 68 | 12 Gallons | 28" × 28" × 22" | 40°F–104°F | 220 lbs. |
| JLC12 | 1.0 | 1–3 | 208–230V | 60 Hz | 6.0 | 20 | 5.3 | 1 | 68 | 12 Gallons | 28" × 28" × 22" | 40°F–104°F | 220 lbs. |
| JLC22 | 2.0 | 3–5 | 208–230V | 60 Hz | 12.0 | 20 | 10.6 | 2 | 71 | 20 Gallons | 30" × 34" × 24" | 40°F–104°F | 360 lbs. |
| JLC32 | 3.0 | 5–7 | 208–230V | 60 Hz | 18.0 | 30 | 15.9 | 3 | 75 | 30 Gallons | 33" × 39" × 25" | 40°F–104°F | 520 lbs. |
JDS offers nothing less than top of the line equipment. Every component and all features are tested for performance, bringing you the best quality. But quality is not even half of it. We strive for perfection and satisfactory service, keeping our customers on top of our list.
Finally, JDS proudly presents the JLC Series Lubricated Compressor. Designed by the very best, the JLC Series will leave you satisfied with everything you expect from your clean air source.
Key features:
Copeland powered heads provide the most quiet, reliable service. The 0.01 micron filter catches the smallest contaminants, leaving only the cleanest air possible. Dust? Oil? Smoke? Even bacteria can't pass through. Our exhaust silencer keeps the noise level to a minimum, and filters the purge air to keep your mechanical room clean. The purge tank/desiccant dryer system provides the cleanest and the most dry air possible, leaving you worry-free throughout the day
| Model Number | JLC11 | JLC12 | JLC22 | JLC32 |
|---|---|---|---|---|
| Total HP | 1.0 HP | 1.0 HP | 2.0 HP | 3.0 HP |
| User Capacity | 1-3 | 1-3 | 3-5 | 5-7 |
| Voltage/Frequency | 115V / 60Hz | 208-230V / 60Hz | 208-230V / 60Hz | 208-230V / 60Hz |
| Amps | 12.4 | 6 | 12 | 18 |
| Breaker Size | 20 | 20 | 20 | 30 |
| CFM | 5.3 | 5.3 | 10.6 | 15.9 |
| Heads | 1 | 1 | 2 | 3 |
| dB | 68 | 68 | 71 | 75 |
| Tank Volume | 12 | 12 | 20 | 30 |
| Size (H x W x D) | 28" x 28" x 22" | 28" x 28" x 22" | 30" x 34" x 24" | 33" x 39" x 25" |
| Temperature Range | 40°F - 104°F | 40°F - 104°F | 40°F - 104°F | 40°F - 104°F |
| Shipping Weight (lbs) | 220 | 220 | 360 | 520 |
