DiaDent Dia-DUO Cordless Warm Vertical Compaction & Backfill Obturation System
TCDS-4007-2000DiaDent Dia-DUO Cordless Warm Vertical Compaction & Backfill Obturation System
Regular price
$1,610.00
Sale price
$1,610.00
Regular price
$1,695.00
Unit price
per
Description
DiaDent Dental Dia-DUO Cordless Warm Vertical Compaction & Backfill Obturation System

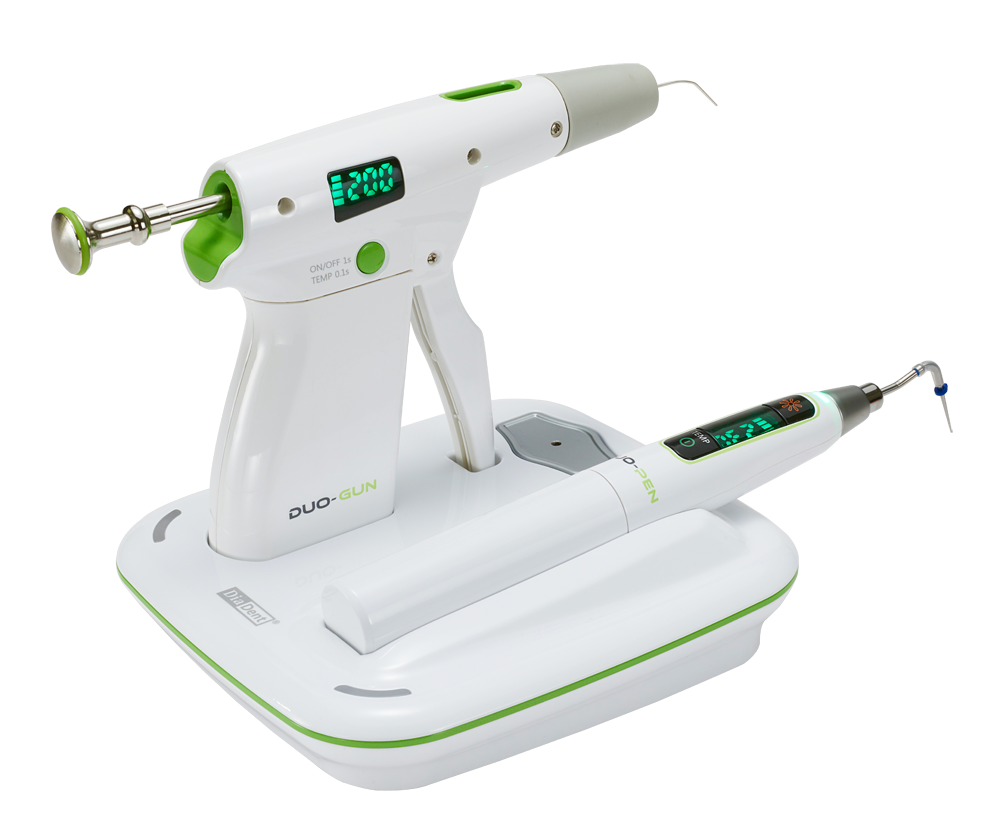

Dia-Duo is the new advanced cordless obturation system from DiaDent Group International that consists of both Duo-Gun BackFill Obturation System and Duo-Pen Warm Vertical Compaction System. Dia-Duo is the improved version of Dia-Gun and Dia-Pen and both units can be conveniently charged in the Duo-Charger. Both systems can be fully recharged after 90 minutes.

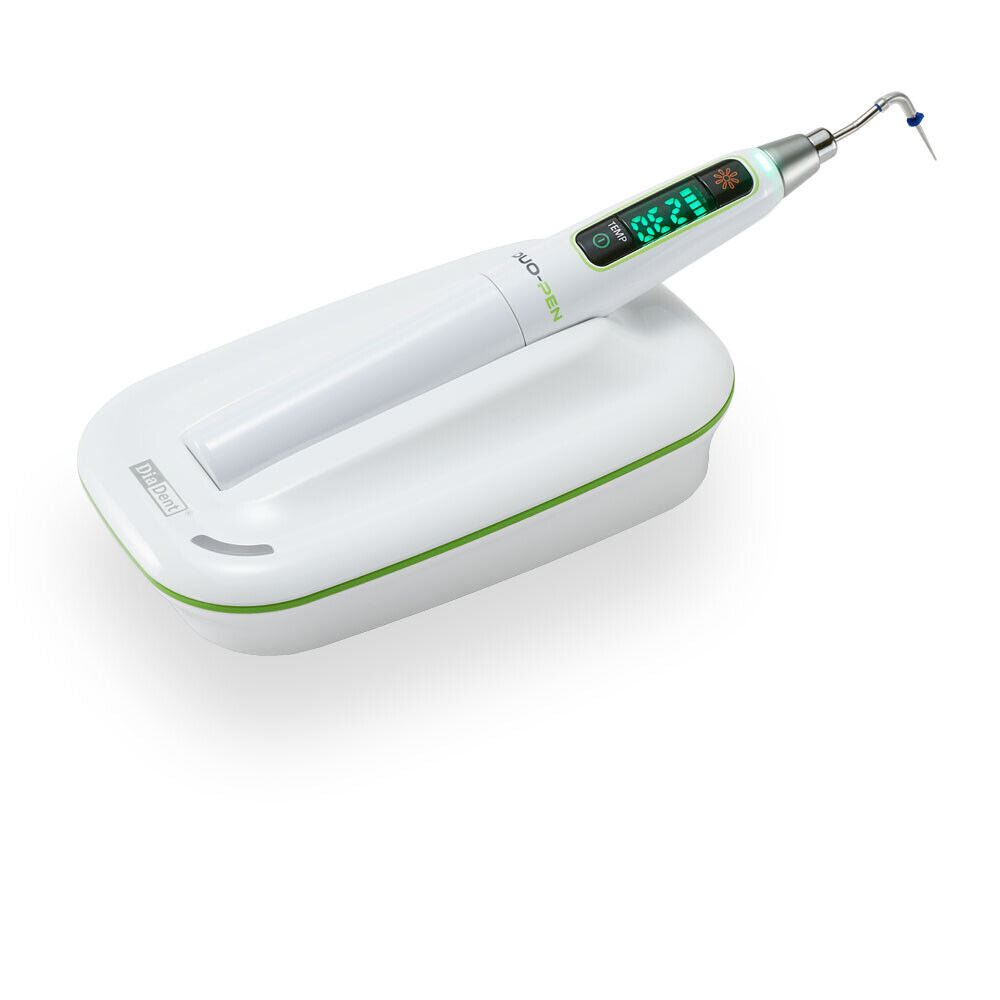

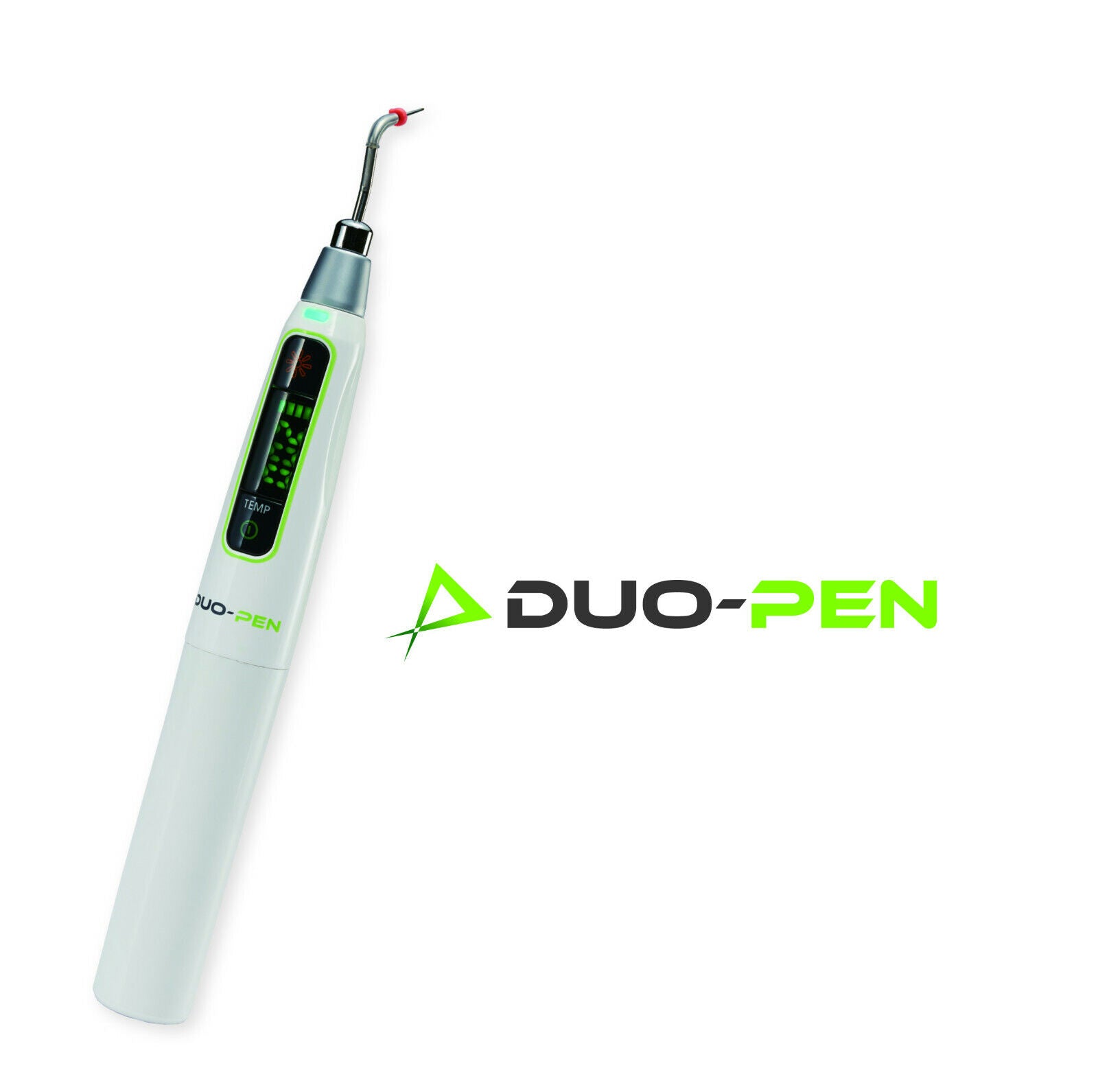

Duo-Pen Vertical Compaction Device FEATURES:
Effectively and tightly compacts and seals all canals including lateral canals
Softens, spreads, cuts, and compacts gutta percha
Ergonomic design: cordless and lightweight. Easy to hold, clean and store
Handpiece remains cool to touch during operation
Quick heating tip reaches highest level of temperature within one (1) second to save treatment time
Display window on handpiece clearly displays remaining battery power, error and setting temperature
Smart temperature control monitors and prevents heating condenser from burning out
Duo-Pen handpiece automatically recognizes the size of heating condenser inserted
Color-coded heating condensers are available in various sizes
(#.04-40, .04-45, .04-50, .06-50, .08-55) for easy identification
Three temperature settings: 170°C, 200°C, and 230°C
Replaceable high energy density lithium-ion battery
Simple operation with two buttons: Power/Temperature Button & Operation/Heating Button

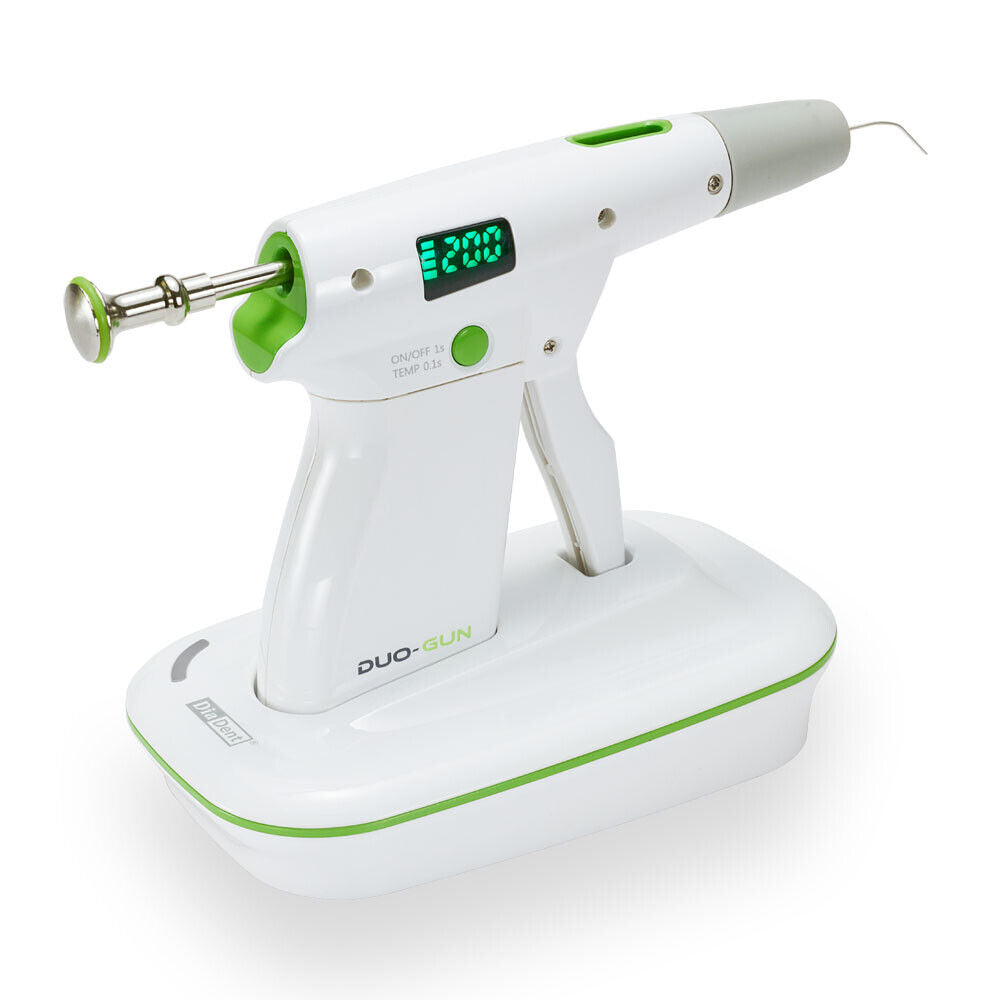

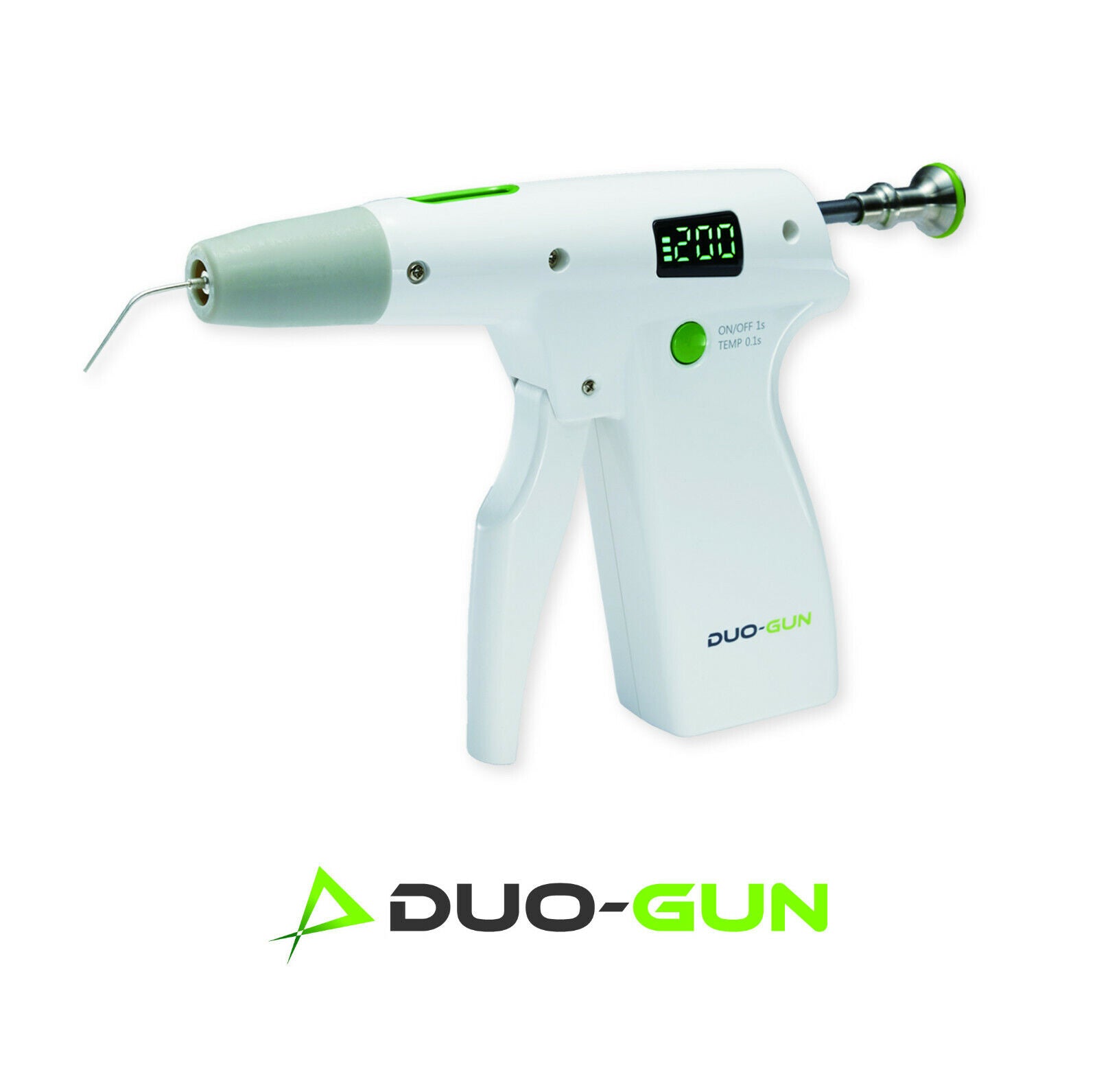

Duo-Gun Backfill Obturation System FEATURES:
Cordless and compact design allows complete freedom of movement
Smooth and precise gutta percha delivery
Variable temperature settings (1400C, 1700C, 2000C): precise control of obturation flow
Quick and durable heating system: temperature reaches 200°C within 15 seconds
Fast and continuous flow of gutta percha filling tightly seals the canal
Designed for both left-handed and right-handed individuals:
Both sides of the handpiece have power button and display window
Both display windows show the remaining battery power, error and setting temperature
Sophisticated and ergonomic design: operate hand trigger obturation with minimal effort
Smart temperature control system maintains stable and constant temperature during operation
Replaceable high energy density lithium-ion battery
Strong, durable, and bendable Duo-Gun tips are available in both 23G and 25G

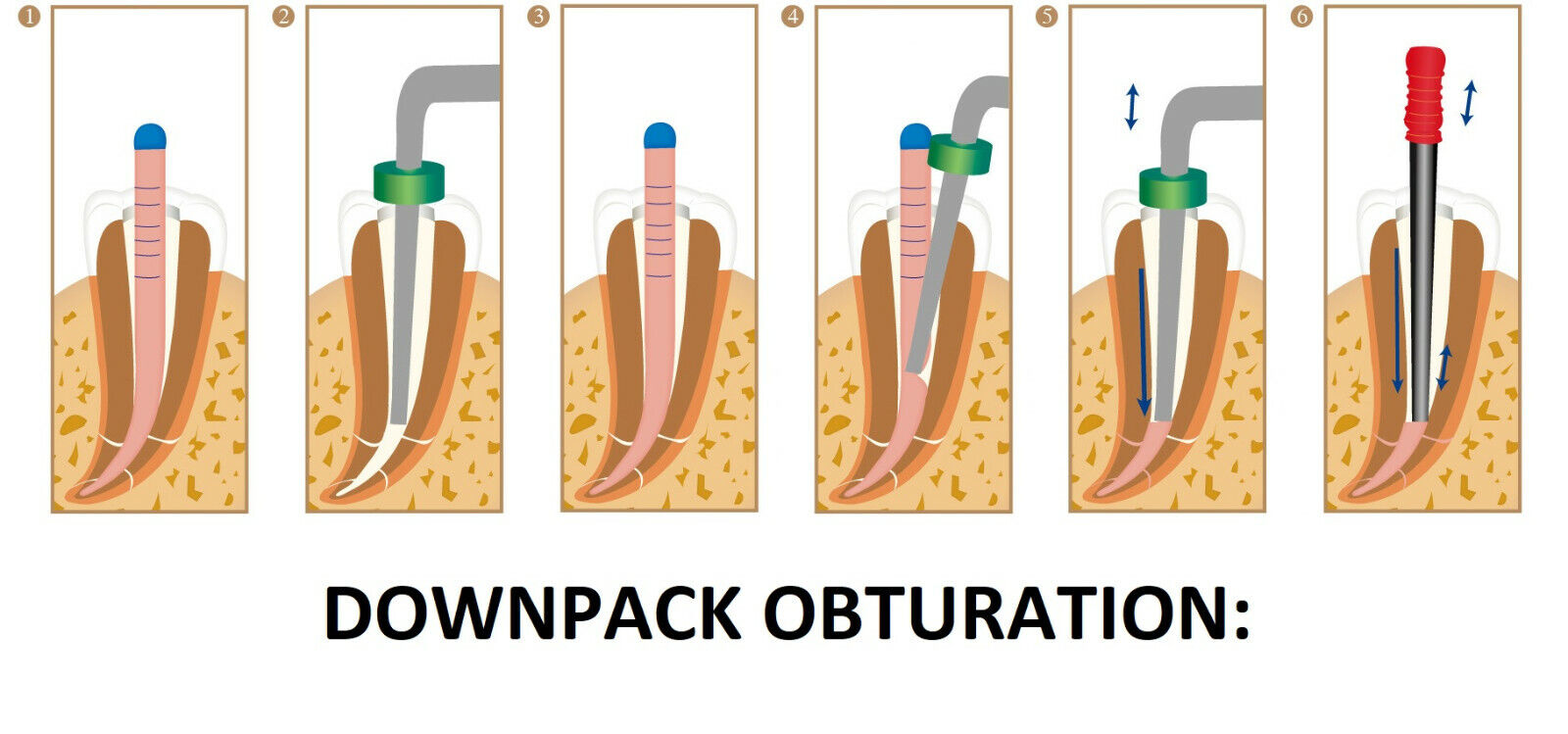

DOWNPACK OBTURATION:
1a. Shape the root canal with endo files and determine the working length. Select a master cone that closely matches the apical size.
1b. Insert Duo-Pen tip (heating condenser)into the root canal to the point 4-7 mm short of the working length. Move and set the endo stop accordingly.
2. Insert the selected master Gutta Percha cone that is coated with sealer.
3a. Place the Duo-Pen tip in the orifice of the canal and activate Duo-Pen by pressing the Operation Button. Using the activated tip, cut the middle of gutta percha cone and condense the soften material to the point 6-9 mm front the apex for about 2 seconds.
3b. Release the Operation Button to allow pen tip to cool down, while at the same time continue pushing and holding the cooled pen tip to the apex for 8 seconds. This ensures all lateral and accessory canals are filled. Activate the pen tip again by pressing and holding the Operation Button for about 1~1.5 seconds, compact the gutta percha cone to the point 4~7 mm of working length.
4. Condense the remaining material using Dia-Kondensor.

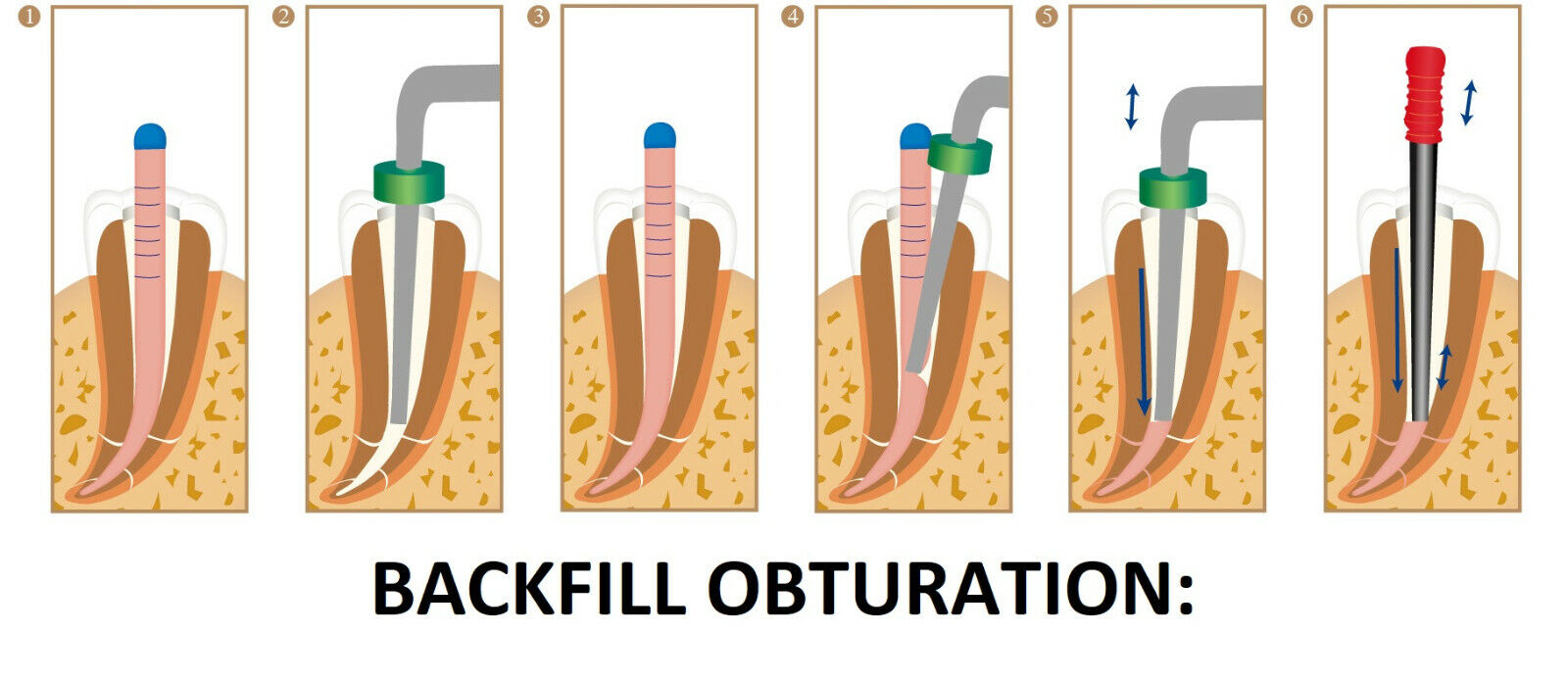

BACKFILL OBTURATION:
5a. Insert a gutta percha pellet into Duo-Gun and adjust to the desired preset temperature.
5b. Using Duo-Gun’s activated tip, make contact with the upper part of filled master cone in the canal, transfer heat for 3-5 seconds to soften the material.
6a. Extrude the melted gutta percha obturator into the canal.
6b. Continue flowing while withdrawing the tip from the canal.
7. Use Dia-Kondensor to compact obturation material.
Package Contents:
Duo-Gun Handpiece, Duo-Pen Handpiece & Duo-Charger,
Heating Condensers #.04-50 and #.06-50, Disposable Sheath (200/box), GP Obturation Tips (23G, 4/box), Safety Caps (2/pack), Plunger Set, Plunger O-Ring Assembly (2/pack), Multi-Tool, Scrubbing Brush, Power Adapter, AC Power Cord
