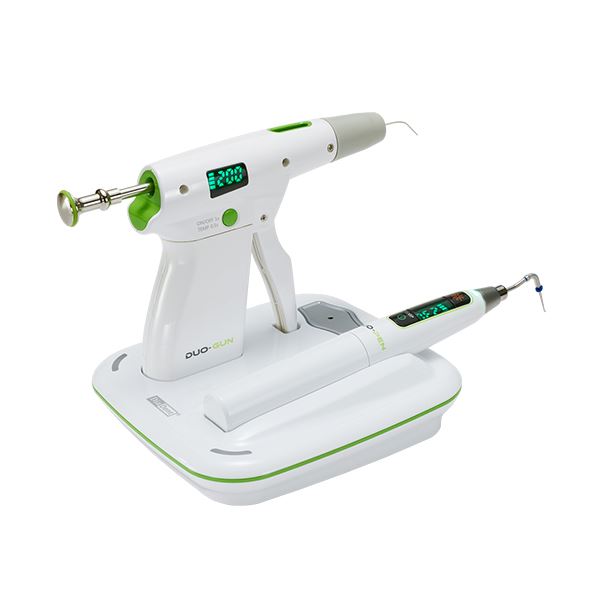

DiaDent Dia-DUO Cordless Warm Vertical Compaction & Backfill Obturation System

• Effectively and tightly compacts and seals all canals including lateral canals
• Softens, spreads, cuts, and compacts gutta percha
• Ergonomic design: cordless and lightweight. Easy to hold, clean and store
• Handpiece remains cool to touch during operation
• Quick heating tip reaches highest level of temperature within one (1) second to save treatment time
• Display window on handpiece clearly displays remaining battery power, error and setting temperature
• Smart temperature control monitors and prevents heating condenser from burning out
• Duo-Pen handpiece automatically recognizes the size of heating condenser inserted
• Color-coded heating condensers are available in various sizes
  (#.04-40, .04-45, .04-50, .06-50, .08-55) for easy identification
• Three temperature settings: 170°C, 200°C, and 230°C
• Replaceable high energy density lithium-ion battery
• Simple operation with two buttons: Power/Temperature Button & Operation/Heating Button

---

• Cordless and compact design allows complete freedom of movement
• Smooth and precise gutta percha delivery
• Variable temperature settings (1400C, 1700C, 2000C): precise control of obturation flow
• Quick and durable heating system: temperature reaches 200°C within 15 seconds
• Fast and continuous flow of gutta percha filling tightly seals the canal
• Designed for both left-handed and right-handed individuals:
  Both sides of the handpiece have power button and display window
  Both display windows show the remaining battery power, error and setting temperature
• Sophisticated and ergonomic design: operate hand trigger obturation with minimal effort
• Smart temperature control system maintains stable and constant temperature during operation
• Replaceable high energy density lithium-ion battery
• Strong, durable, and bendable Duo-Gun tips are available in both 23G and 25G

---

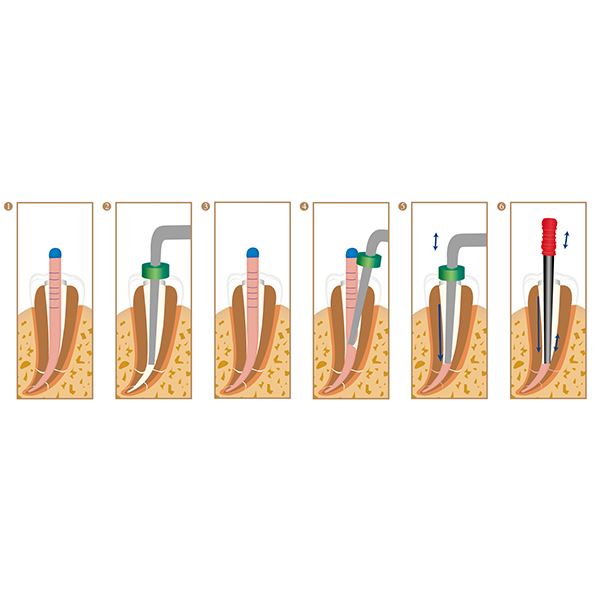

DOWNPACK OBTURATION:
1a. Shape the root canal with endo files and determine the working length. Select a master cone that closely matches the apical size.
1b. Insert Duo-Pen tip (heating condenser)into the root canal to the point 4-7 mm short of the working length. Move and set the endo stop accordingly.
2. Insert the selected master Gutta Percha cone that is coated with sealer.
3a. Place the Duo-Pen tip in the orifice of the canal and activate Duo-Pen by pressing the Operation Button. Using the activated tip, cut the middle of gutta percha cone and condense the soften material to the point 6-9 mm front the apex for about 2 seconds.
3b. Release the Operation Button to allow pen tip to cool down, while at the same time continue pushing and holding the cooled pen tip to the apex for 8 seconds. This ensures all lateral and accessory canals are filled. Activate the pen tip again by pressing and holding the Operation Button for about 1~1.5 seconds, compact the gutta percha cone to the point 4~7 mm of working length.
4. Condense the remaining material using Dia-Kondensor.

---

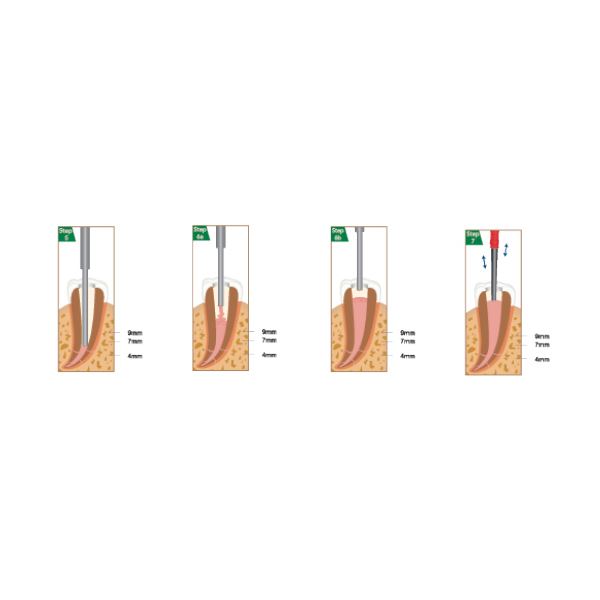

BACKFILL OBTURATION:
5a. Insert a gutta percha pellet into Duo-Gun and adjust to the desired preset temperature.
5b. Using Duo-Gun’s activated tip, make contact with the upper part of filled master cone in the canal, transfer heat for 3-5 seconds to soften the material.
6a. Extrude the melted gutta percha obturator into the canal.
6b. Continue flowing while withdrawing the tip from the canal.
7. Use Dia-Kondensor to compact obturation material.
