Description

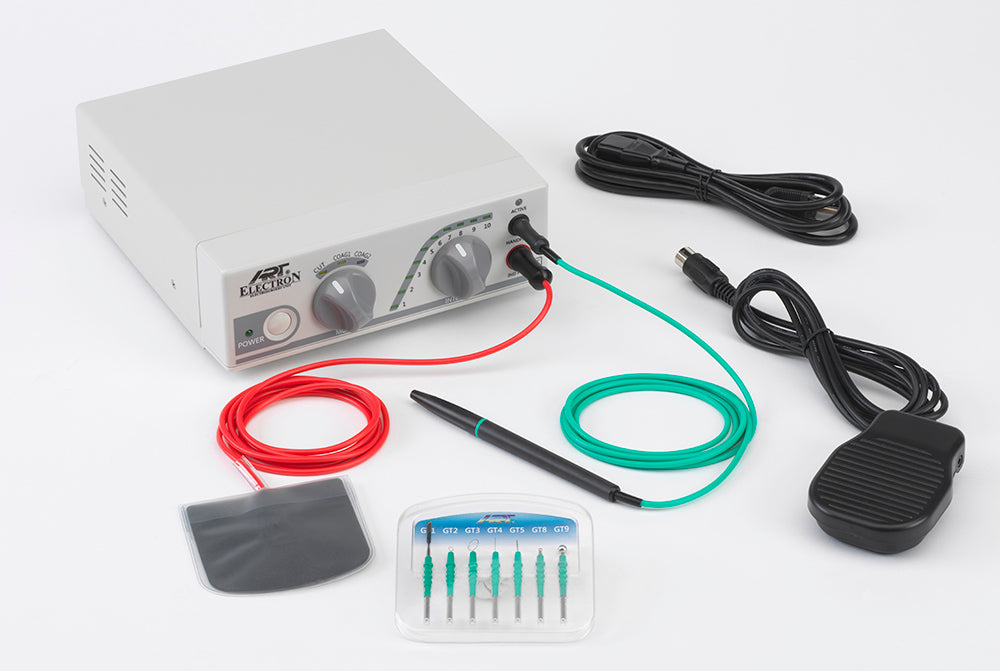

Included Parts & Accessories:

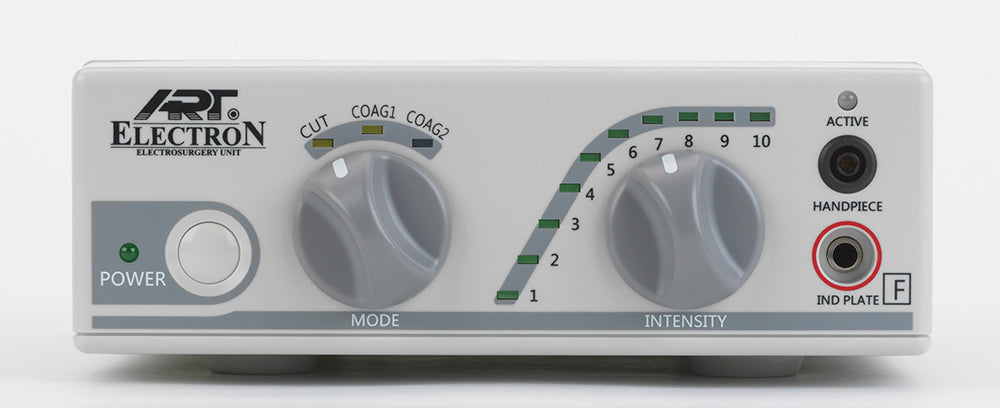

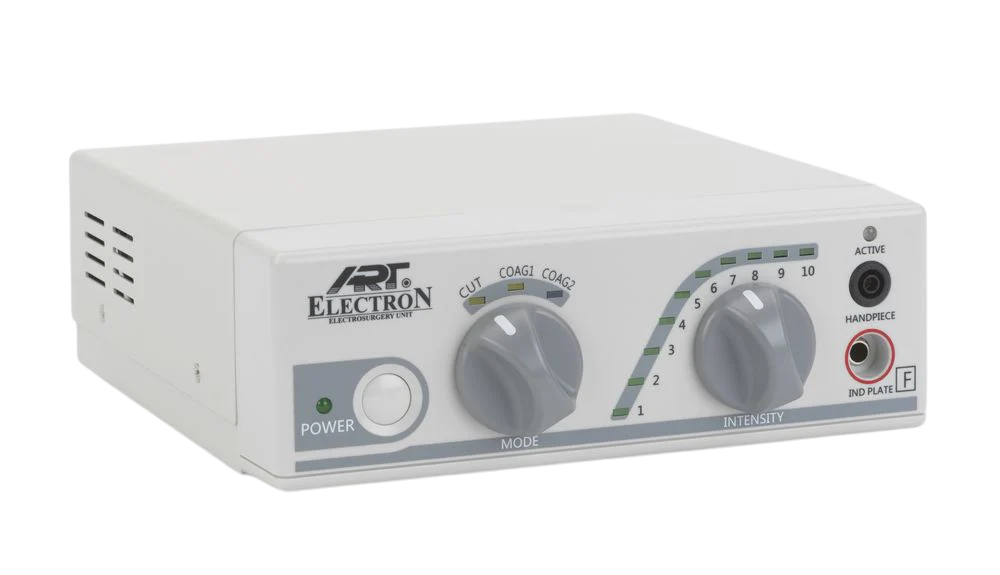

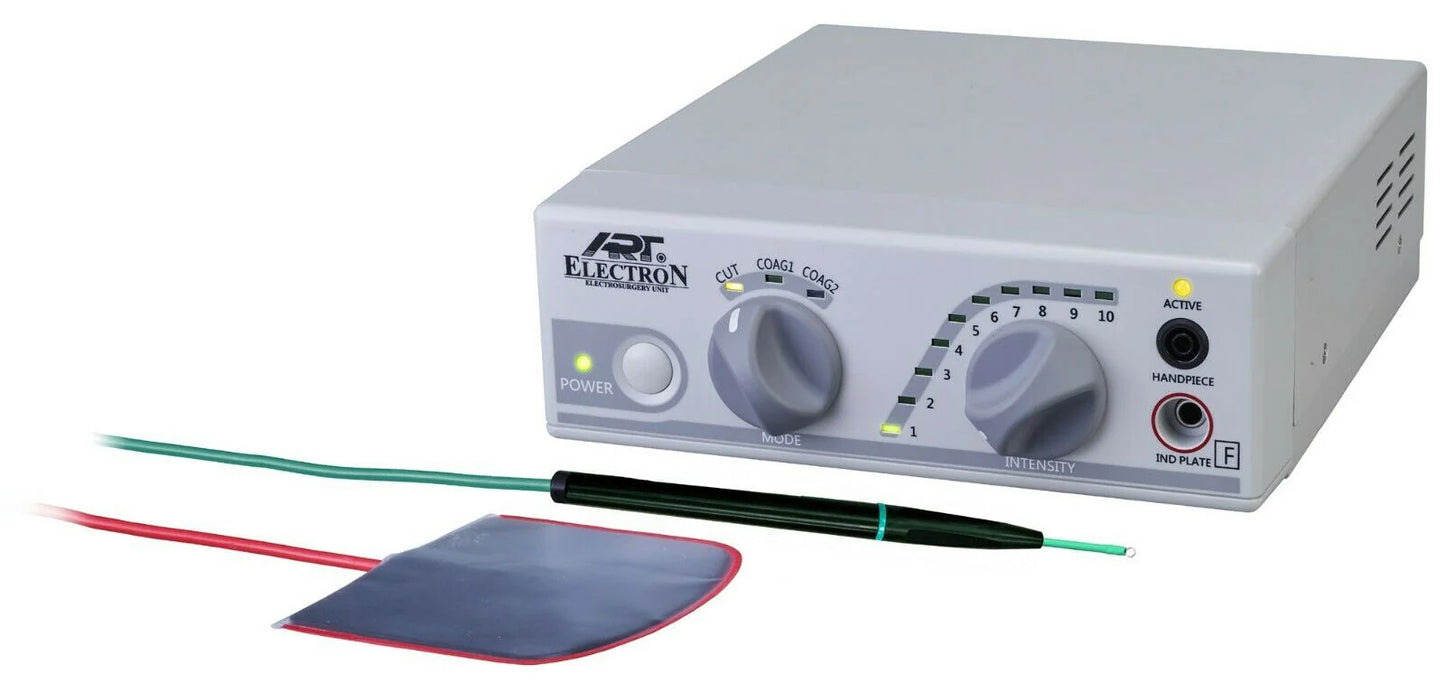

- Electron (ART E1) Main Unit
- Power Cord
- PP0031-002: Universal foot switch
- EU0004-002: Indifference/ Grounding plate
- EU0003-032: E1 hand piece
- TE0002-002: Assorted electrode set of 7 (includes the following electrodes):
- TE0001-012: T1 Diamond shaped electrode
- TE0001-022: T2 Small loop electrode
- TE0001-032: T3 Large loop electrode
- TE0001-042: T4 Fine wire electrode
- TE0001-052: T5 Heavy wire electrode
- TE0001-072: T7 Oval loop electrode
- TE0001-092: T9 Heavy ball electrode
- EU0013-002: Bipolar converter (not included). The bipolar converter does not convert the system to operate in bipolar mode. It merely allows bipolar prongs and hand pieces to be used with the ART-E1
- Maximum power output: 50W (@ 400 ohm load)
- Power supply: 110V±5% ~50/60Hz 92VA or 220V±5% ~50/60Hz 92VA
- Work frequency: 1.5~1.7MHz±5%
- Dimension (cm): 23(L) x 22.5(W) x 8.5(H)
- Hand piece cable length: 190 cm
- Indifference plate cable length: 190 cm
- Weight: 12lbs
