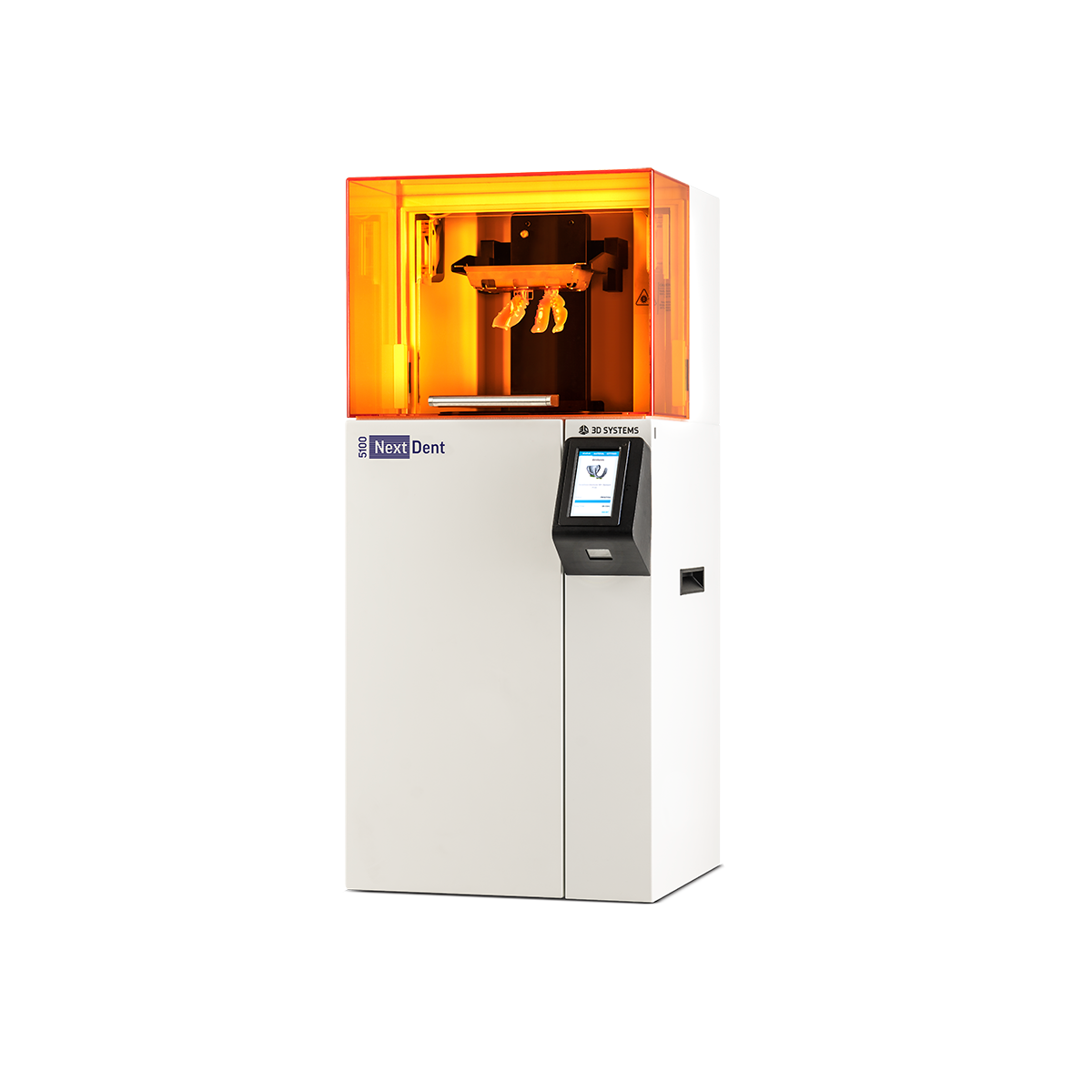

3D Systems NextDent 5100 3D Printer

Applications

• Complete digital dentistry solution for 12 indications in a range of 30 NextDent materials
• Orthodontic models
• Crown and bridge models
• Long-term Temporaries (provisionals)
• Pressable wax restorations
• Surgical guides
• Splints
• Night guards
• Try-in and long-term dentures

Benefits

• Part of a complete workflow with NextDent materials, 3D Sprint^® software and post-processing
• Accuracy, repeatability, unmatched productivity and low total cost of operations
• Flexibility to address multiple indications with range of NextDent materials for medical and non-medical devices
• This complete solution represents industry-defining materials and print innovation, dental domain expertise, and regulatory compliance in all major markets to revolutionize your workflow

Tech Specs

• Non-Contact Membrane Figure 4 technology
• High speed productivity
• Build Volume: (X x Y x Z): 124.8 x 70.2 x 196 mm (4.9 x 2.8 x 7.7 in)
• Fully compatible with industry-standard intraoral scanning and software solutions
• Quickly swap and remove resin trays, print platforms can be removed with one hand, and easily remove parts from the print platform
• Touch screen with clear indicators and works with gloves
• Material Quality Guarantee and traceability for regulatory bodies
• Max Resolution: 1920 x 1080 pixels
• Pixel Pitch: 65 microns (0.0025 in) (390.8 effective PPI)
• Wavelength: 405nm
• Operating Environment: 64-82 F (18-28 C), 20-80% relative humidity
• Electrical: 100-240 VAC, 50/60 Hz, Single Phase, 4.0A
• Dimensions: 16.7 x 19.25 x 38.22 in
• Weight: 76 lbs

Dental 3D Printer by 3D Systems. 12 month manufacturer’s warranty included. Build Volume: 4.9 x 2.8 x 7.7 in., Dimensions: 16.7 x 19.25 x 38.22 in, Electrical: 100-240 VAC, 50/60 Hz, Single Phase, 4.0A, Weight: 76 lbs
