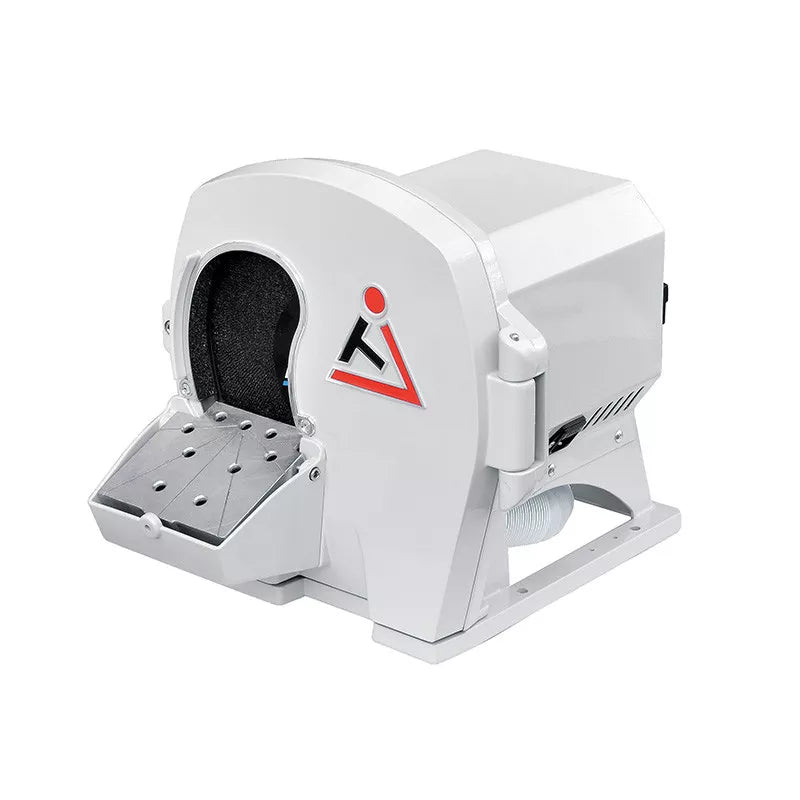

10" Dental Wet Model Trimmer Plaster Abrasive Grinder Trimming Equipment Gypsum
10" Dental Wet Model Trimmer Plaster Abrasive Grinder Trimming Equipment Gypsum
The following items cannot be returned:
opened handpieces, small and large equipment, alloy, special order items, Rx and controlled substances.
No installation charges will be reimbursed for the large equipment.
Description
Properties:
Powerful:500W engine. Constant size and performance without fatigue.
Effective: Slice easily through 2800 rpm.
Stable: More than 20kg Mounted on non-slip feet.
Grinding Water Or Dry: The trimmer can be transformed working water dry work, but work in water is recommended.
Silent: Disc bore prevents noise and vibration.
Ergonomics:Outer shapes are round, easy to clean. Wide gradient and sloping work table.Window full screen.Cleaning size can work in 3 different angles, you can adjust the screws.
How to use:

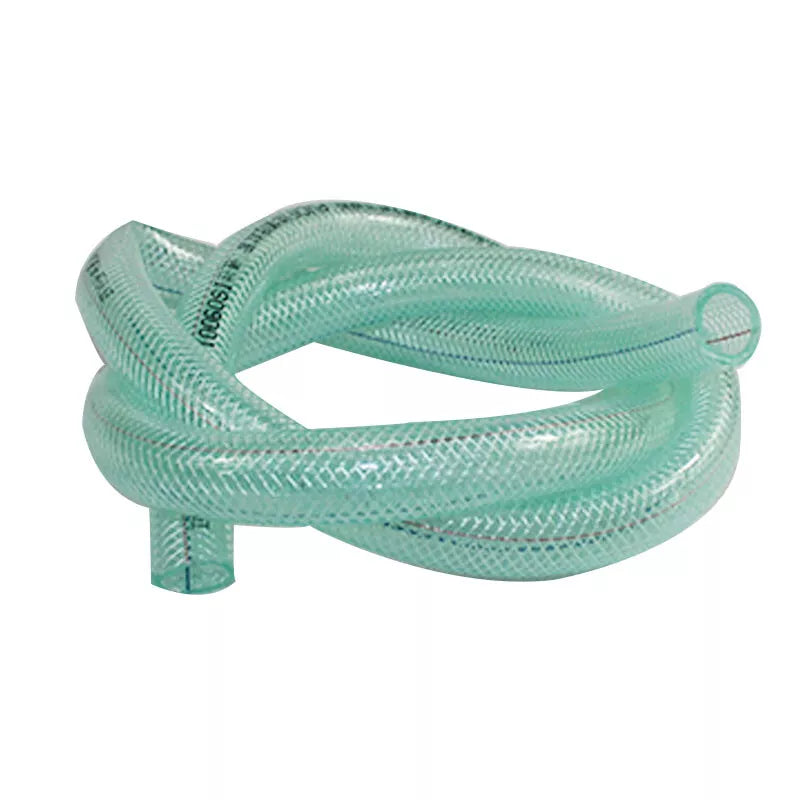

1. Connect one end of the water tube to the nozzle of the wet model trimmer and the other end to the tap, open the valve
Â
2. Connect the waste-disposal tube to the unit
3. Connect the power cord, and switch on the power switch (O=off, l=on)
4. When braking, it is normal to hear clicking before the sand tablet stops. If the sand tablet makes unusually loud noises, remove it, and use the included hex-wrench to adjust the screw on the back cover (18)
5. To check if you need to replace the abrasive disk, rotate the disk by hand and estimate: if the platform jumps more than 2mm, change the disk. After replacing the disk, make sure to tighten the ring on the platform 8 (closest to the outside of the sand tablet)
If there is some abnormal noise when working on
Possible reason：① Axon is loosing ② Disc is not plain enough。
How to solve it：①Dissemble the disc⒃ with spanner，make the snap
Ring tightly；② change the disc。
The machine does not work when power on
Possible reason：① fuse get burnt；② motor get burnt；③ switch get wrong。
How to solve it：① change the fuse（22） which inside the socket；② change the motor ③ change the switch
Voltage: <A>220V/50Hz±10%
Power: 500W Rotational Speed: 2800 rpm
Dimensions: 44×35×35cm Weight of the dental trimmer: 20kg
Disc Diameter: fits 23.5-32cm / 9inch - 12.5inch

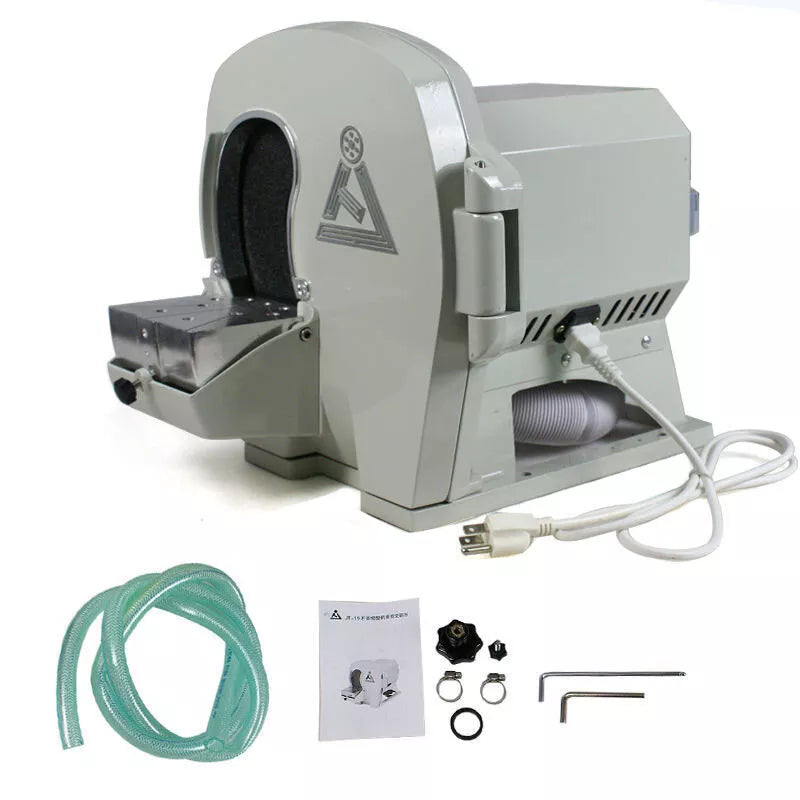

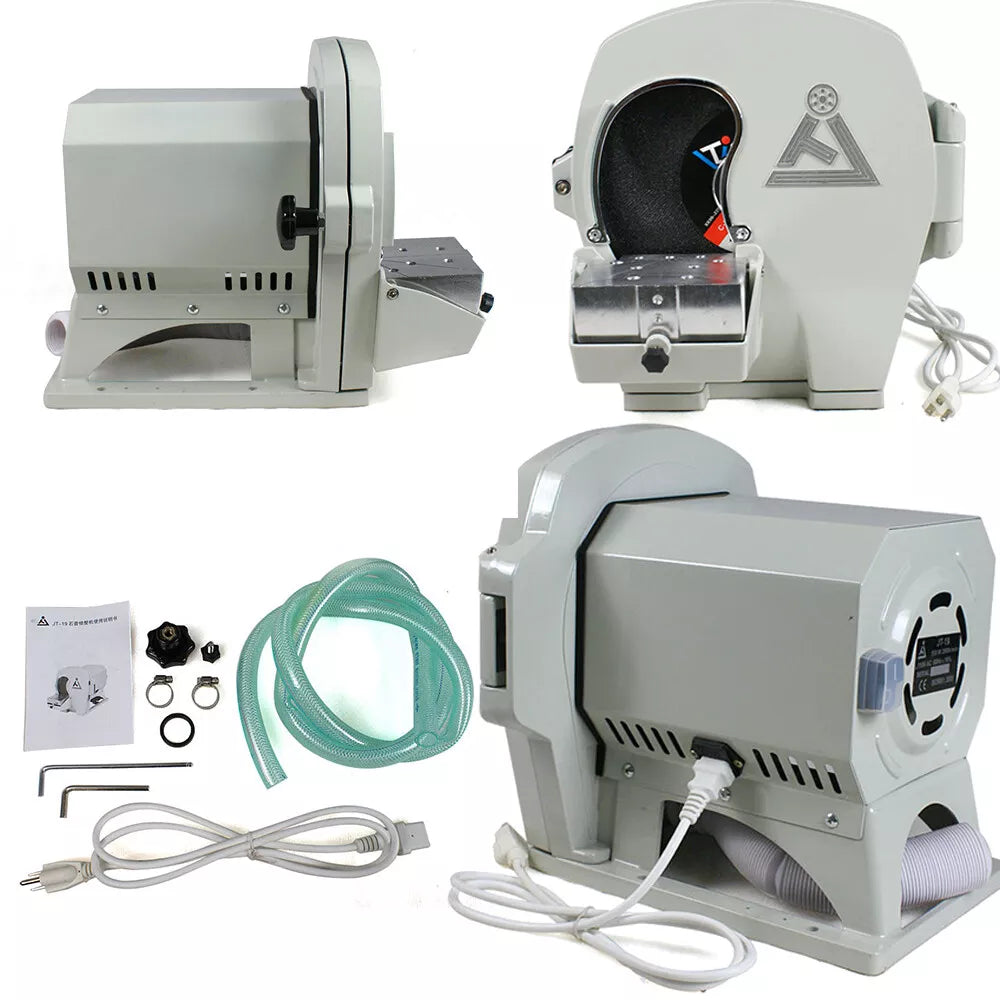

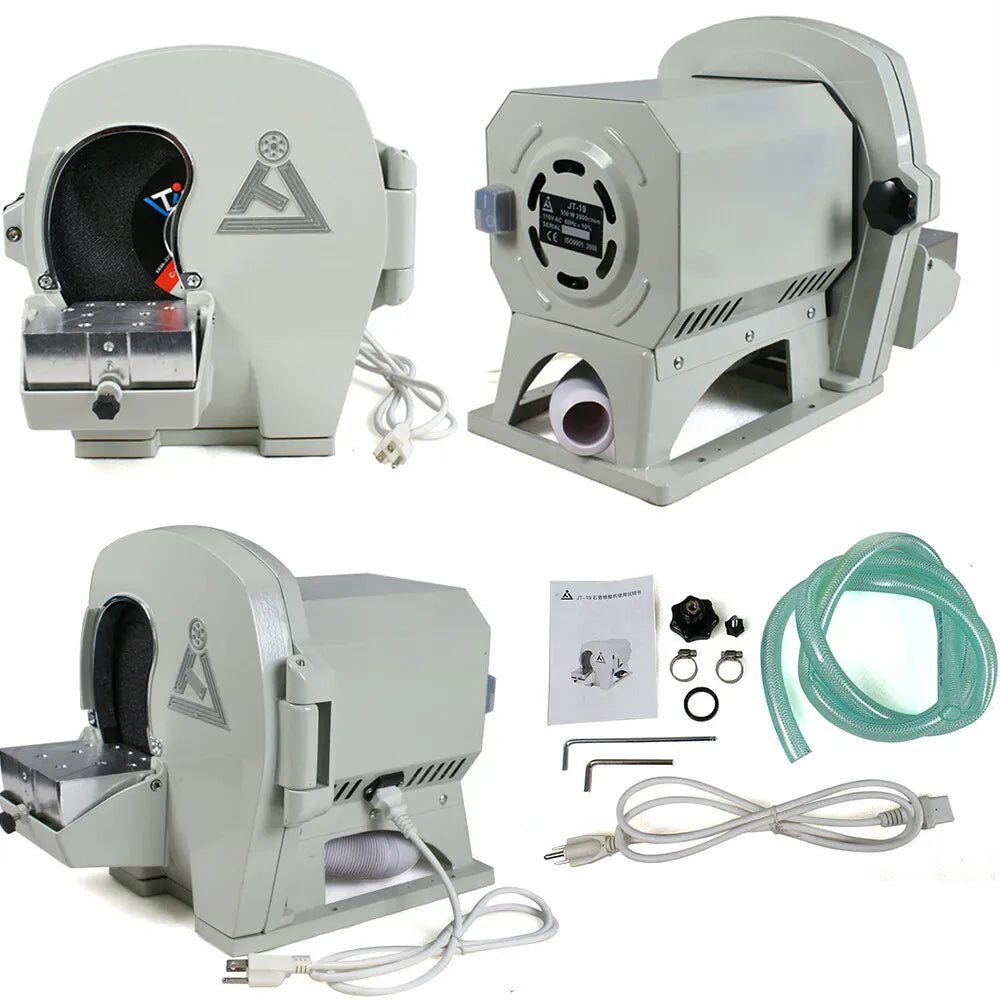

Package:
1x JT-19 Wet Model Trimmer Abrasive Disc Wheel Dental Lab Equipment
